SC30 Cold Press — 15–25 kg/h, 68 mm food-grade screw, 3000W with 6 nozzles for higher oil yield.

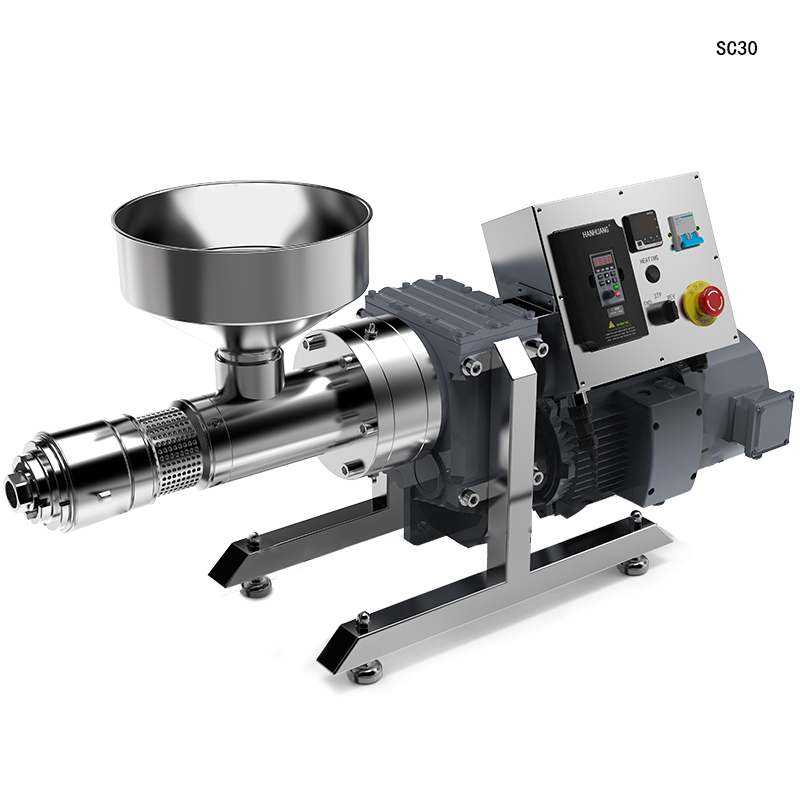

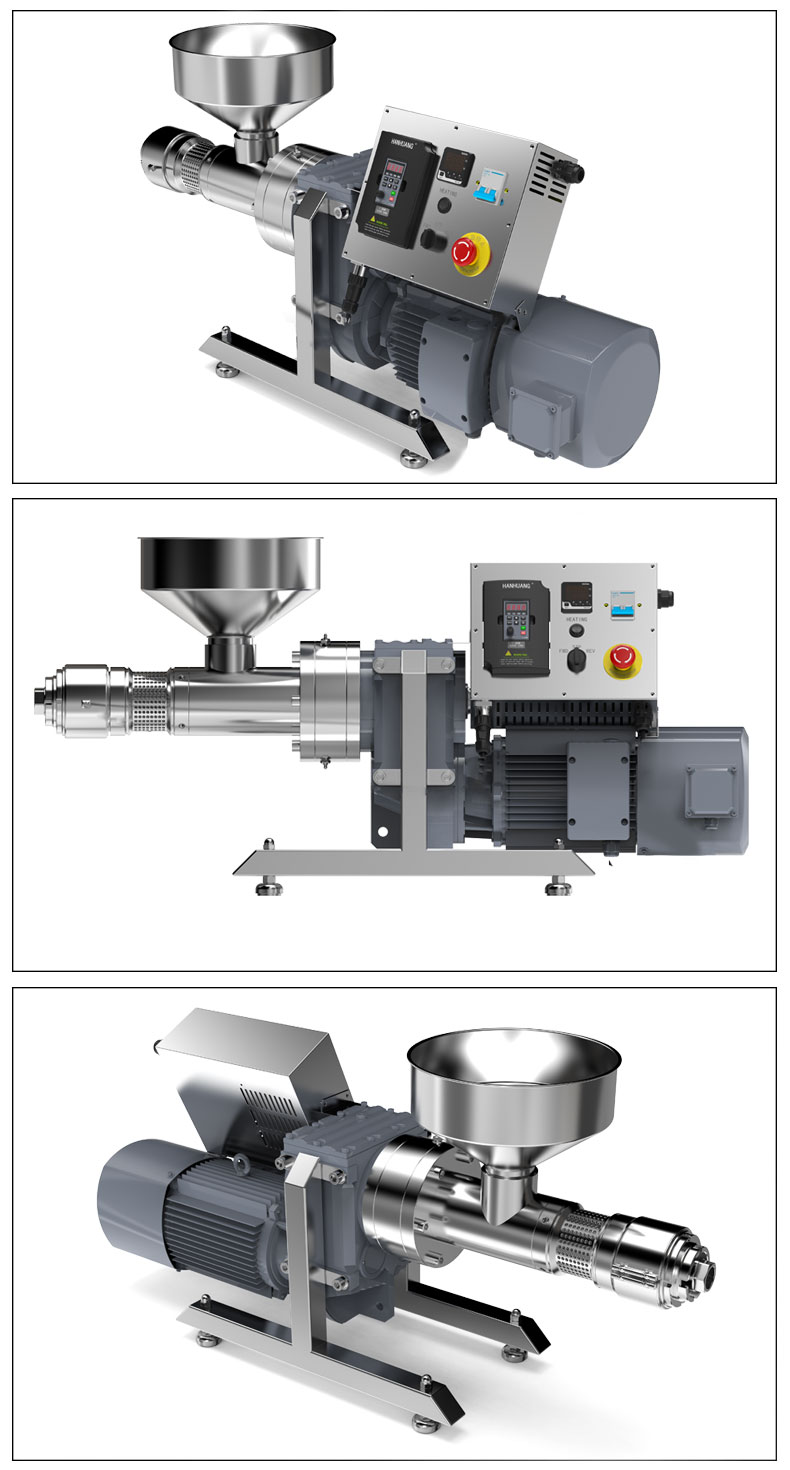

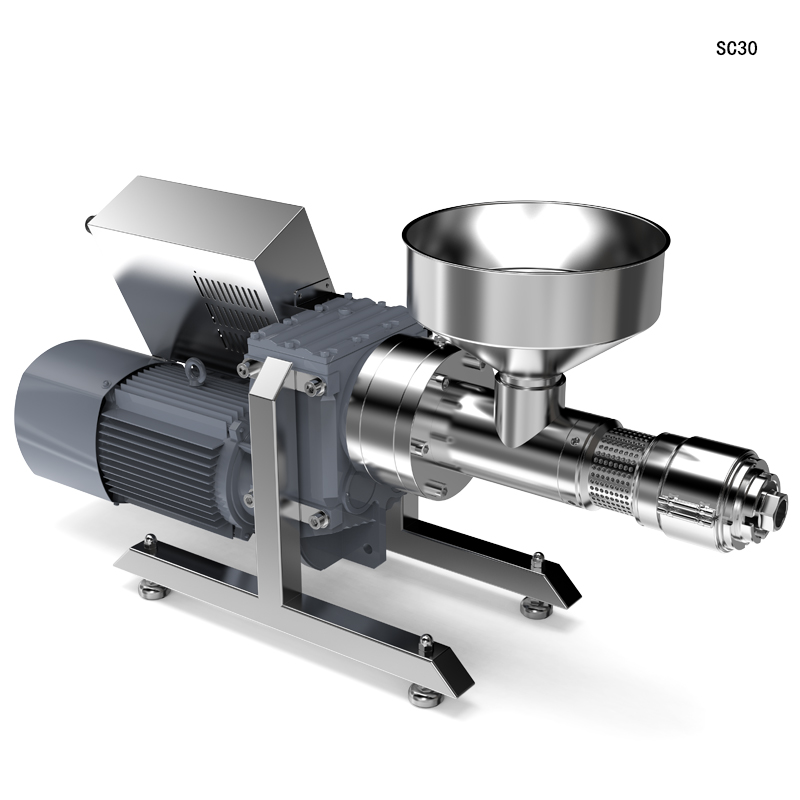

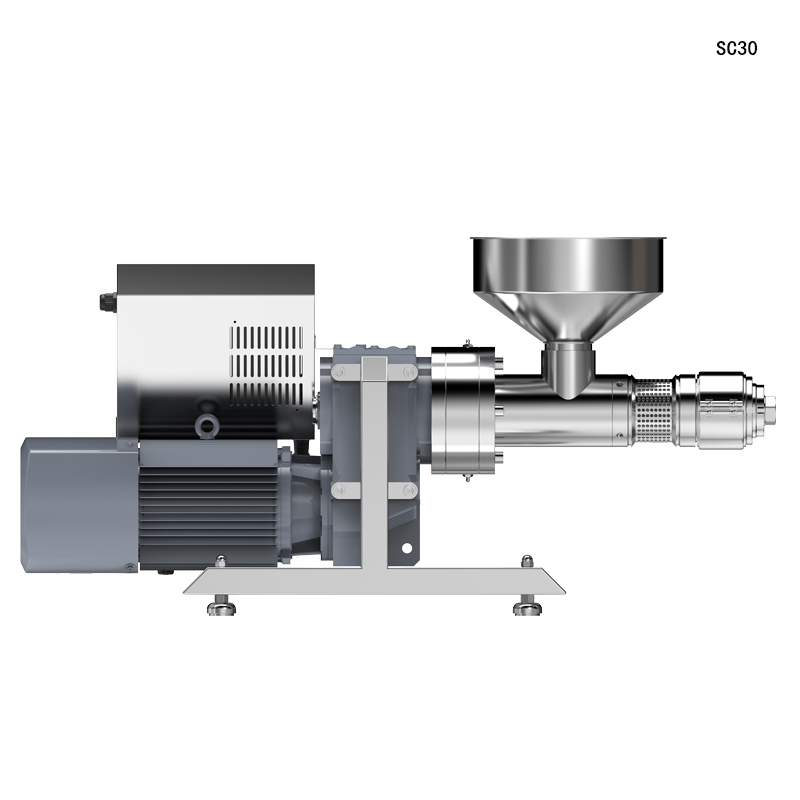

The Hanhuang SC30 cold press oil machine is a compact screw press built for continuous low-temperature extraction. Running at 15–25 kg/h, it is driven by a 68 mm food-grade stainless steel screw inside a fully enclosed press chamber, turning more than 30 kinds of oilseeds into clear, aromatic oil with the oil cake discharged separately — no chemical solvents, no refining step.

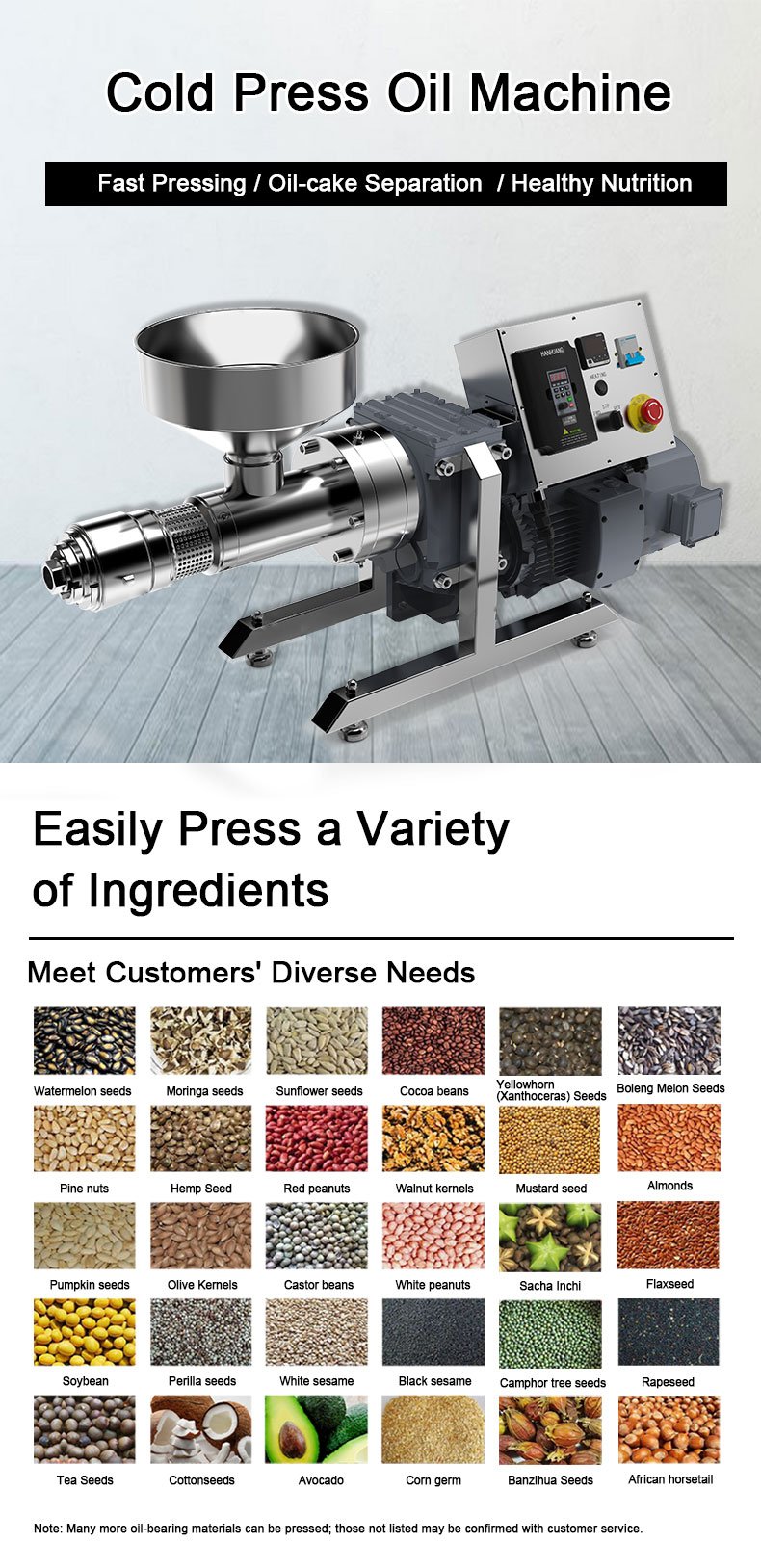

Suitable materials: sunflower seeds, sesame, peanuts, walnuts, walnut kernels, almonds, flaxseed, hemp seed, pumpkin seeds, soybeans, rapeseed, perilla seeds, white and black sesame, castor beans, cocoa beans, coconut, avocado, corn germ, moringa seeds, watermelon seeds, pine nuts, mustard seed, sacha inchi, tea seeds, cottonseeds, safflower, camphor tree seeds and more.
Description: The SC30 sits in the middle of the Hanhuang cold press family — heavier duty than a home machine, far more affordable than a full production line. Adjustable pressing temperature lets you run true cold pressing for delicate oils (flax, perilla, hemp) The variable frequency drive lets you tune screw speed to the material, and the integrated gearbox reduction keeps torque high and operation smooth, protecting the motor through long runs.
Key Features:
15–25 kg/h Continuous Output: enough for a small workshop or farm shop to press several hundred kilograms of seed per shift, with automatic oil-cake separation as it runs.

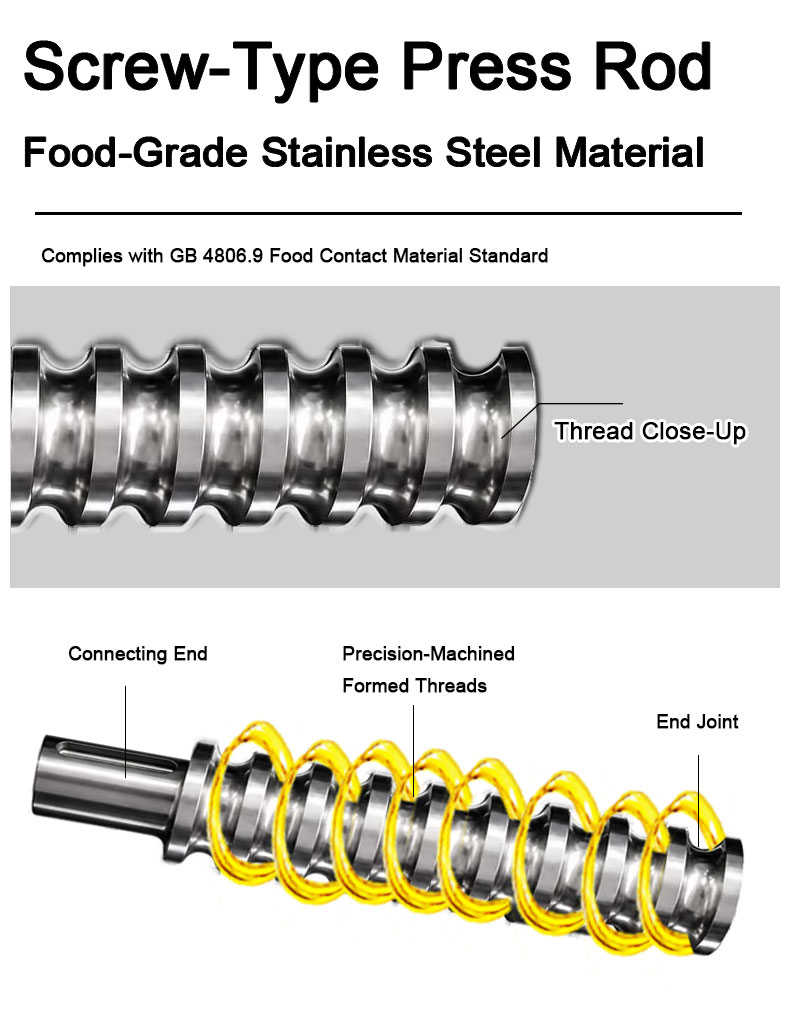

68 mm Food-Grade Screw Rod: precision-machined, hardened threads press evenly; all contact parts use food-grade stainless steel complying with the GB 4806.9 food contact material standard.

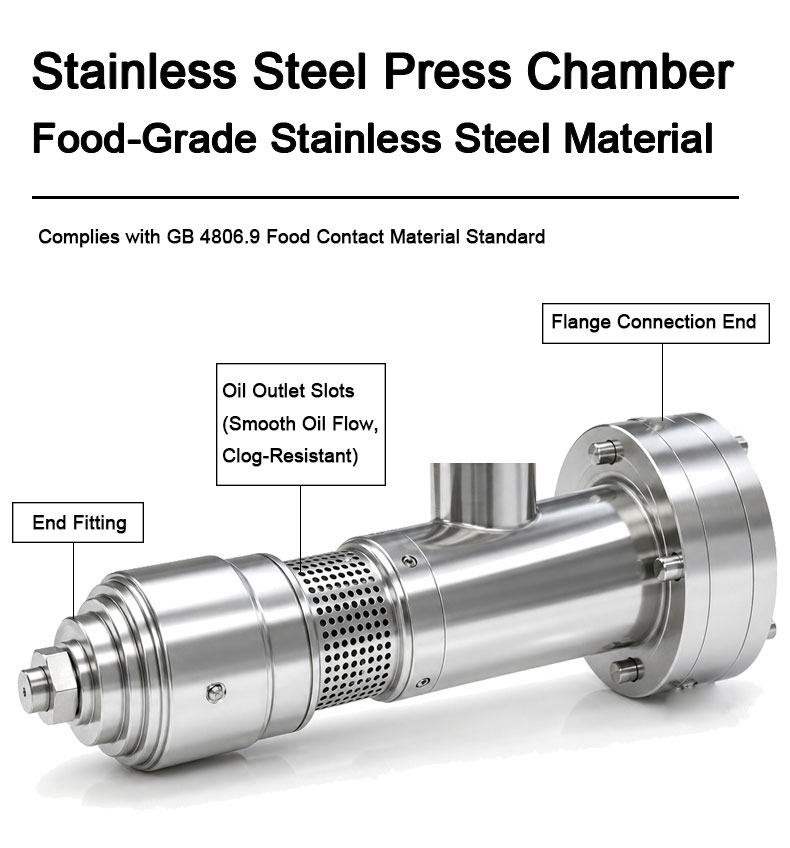

Clog-Resistant Press Chamber: stainless steel barrel with smooth oil outlet slots and a flange connection end — oil flows out cleanly and the chamber strips down quickly for cleaning.

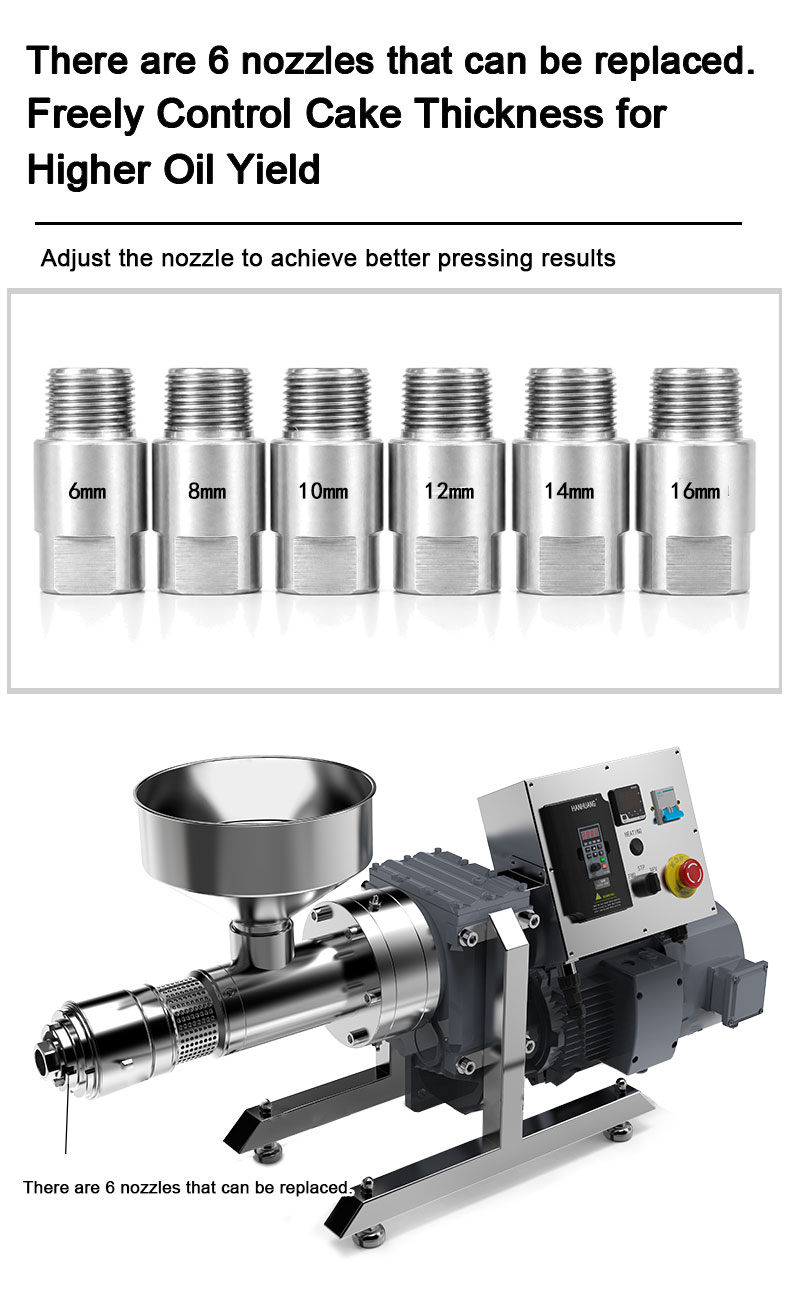

6 Interchangeable Nozzles (6/8/10/12/14/16 mm): swap the discharge nozzle to control cake thickness and residue oil content, squeezing the most out of every seed type.

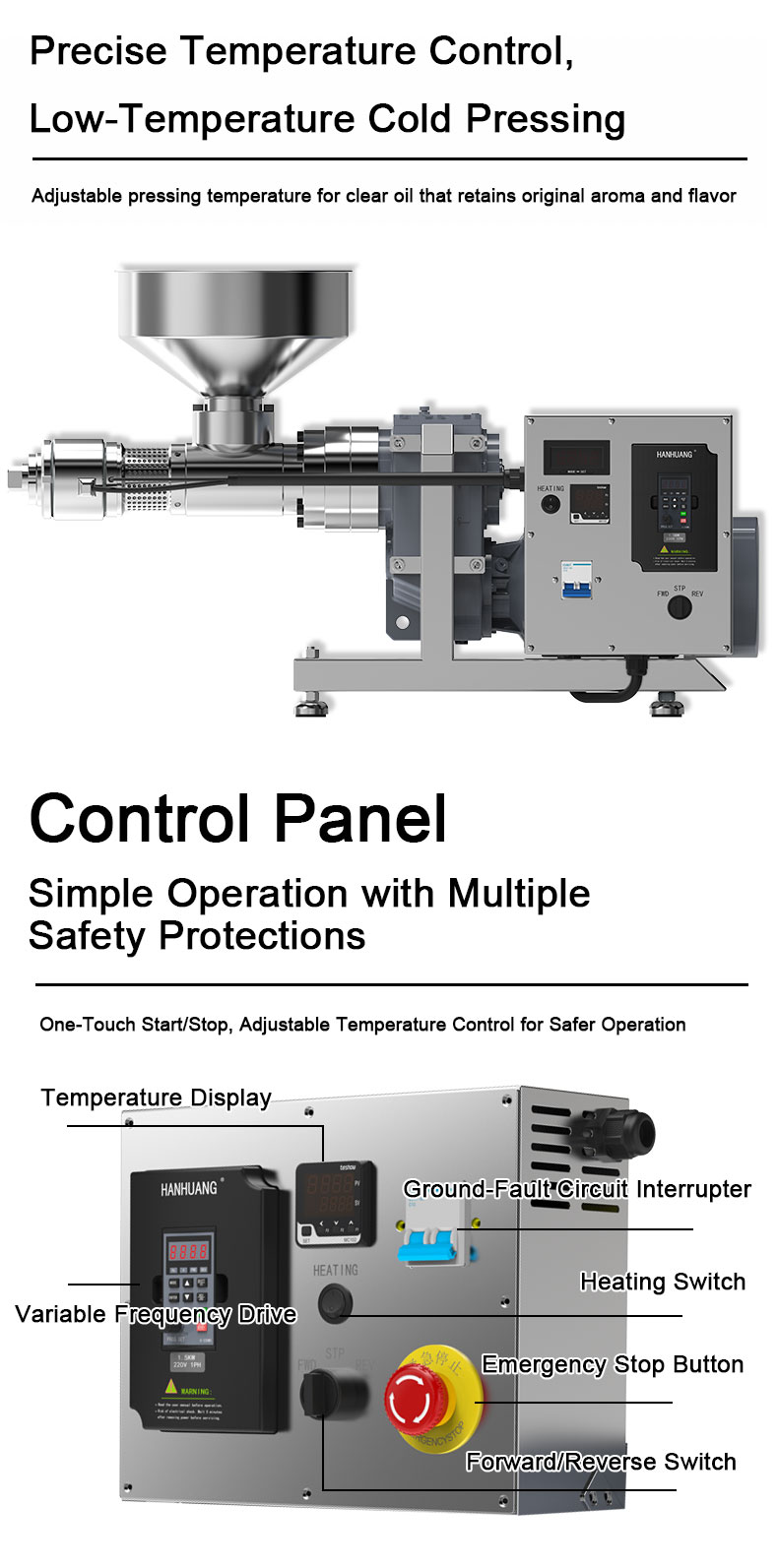

Precision Temperature Control: digital temperature display and an adjustable 800W heating coil keep the chamber in the low-temperature range, preserving aroma, color and nutrients in the oil.

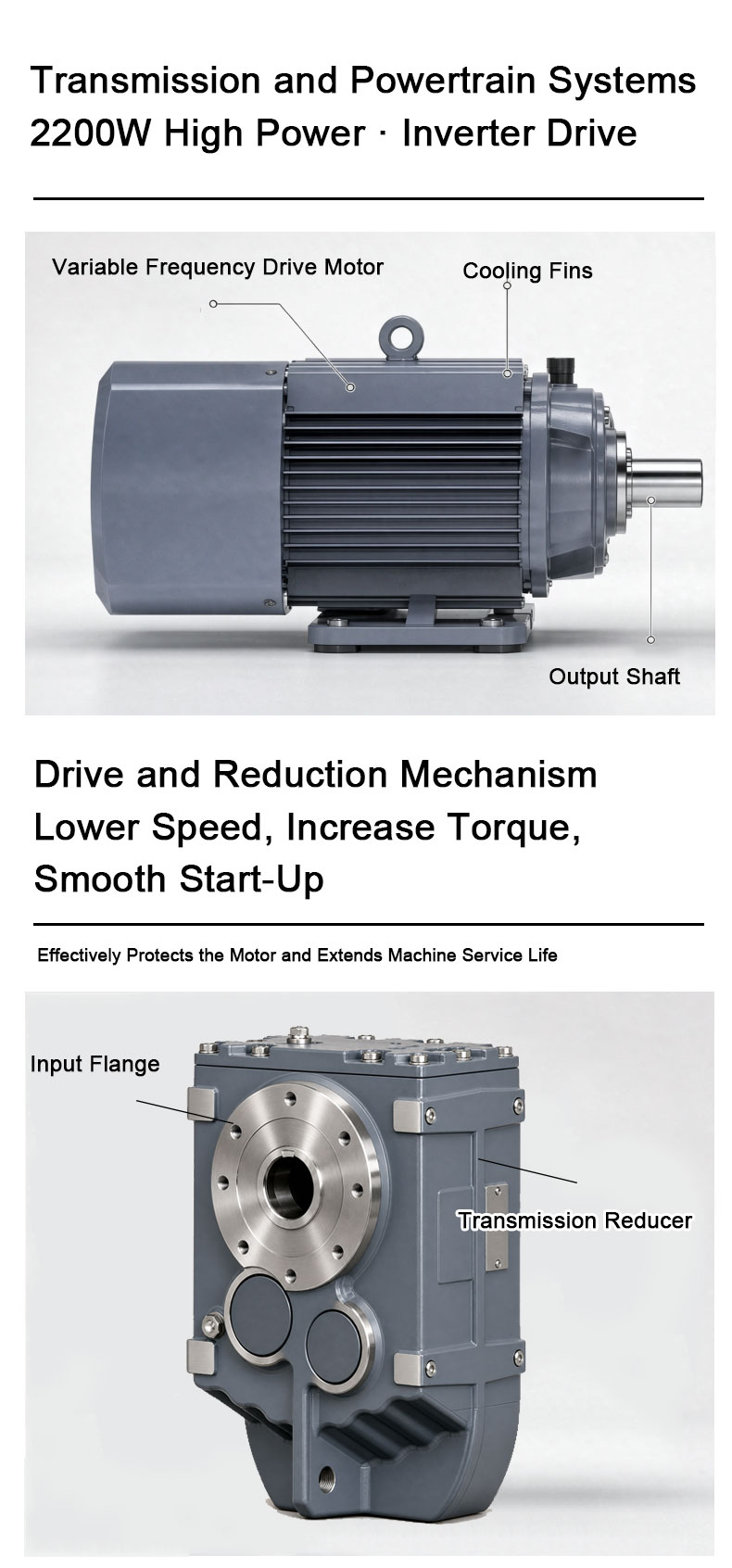

2200W VFD Motor with Gear Reduction: lower speed, higher torque and smooth start-up; the transmission reducer effectively protects the motor and extends machine service life.

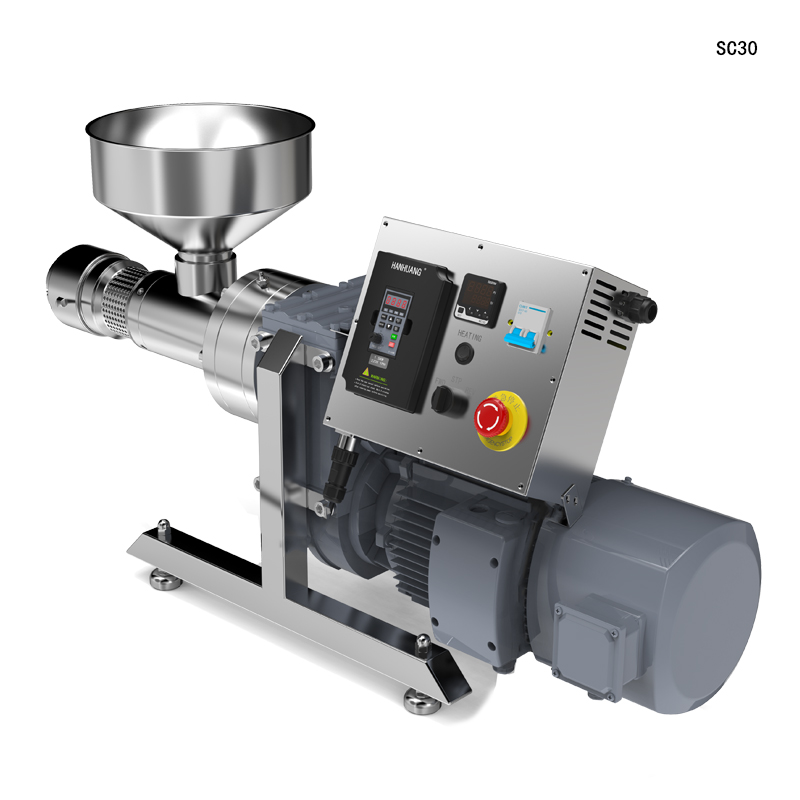

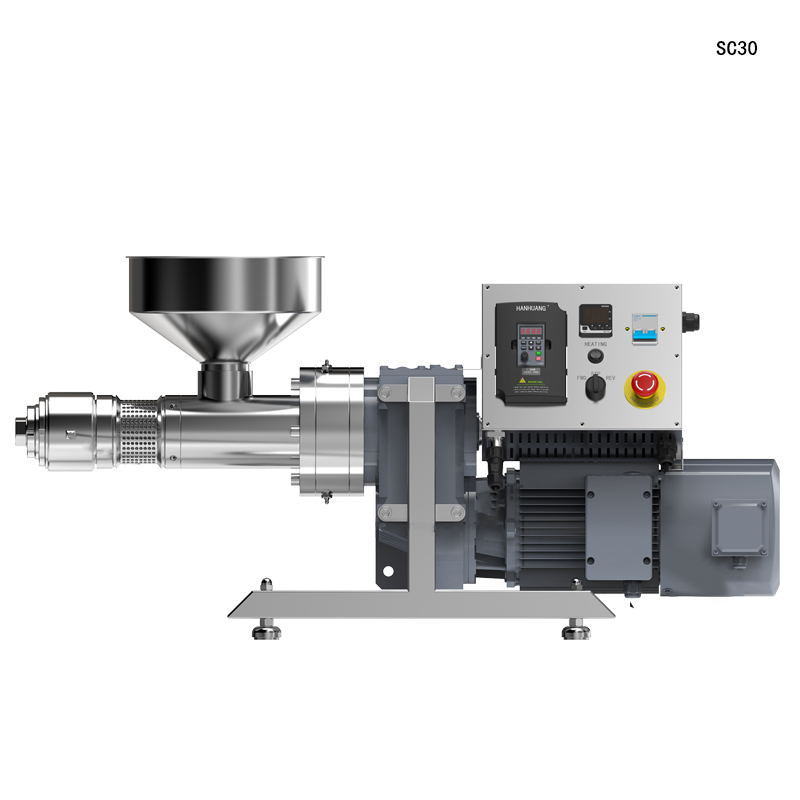

Full-Function Control Panel: one-touch start/stop, variable frequency drive, heating switch, forward/reverse switch, ground-fault circuit interrupter and a red emergency stop button for safer daily operation.

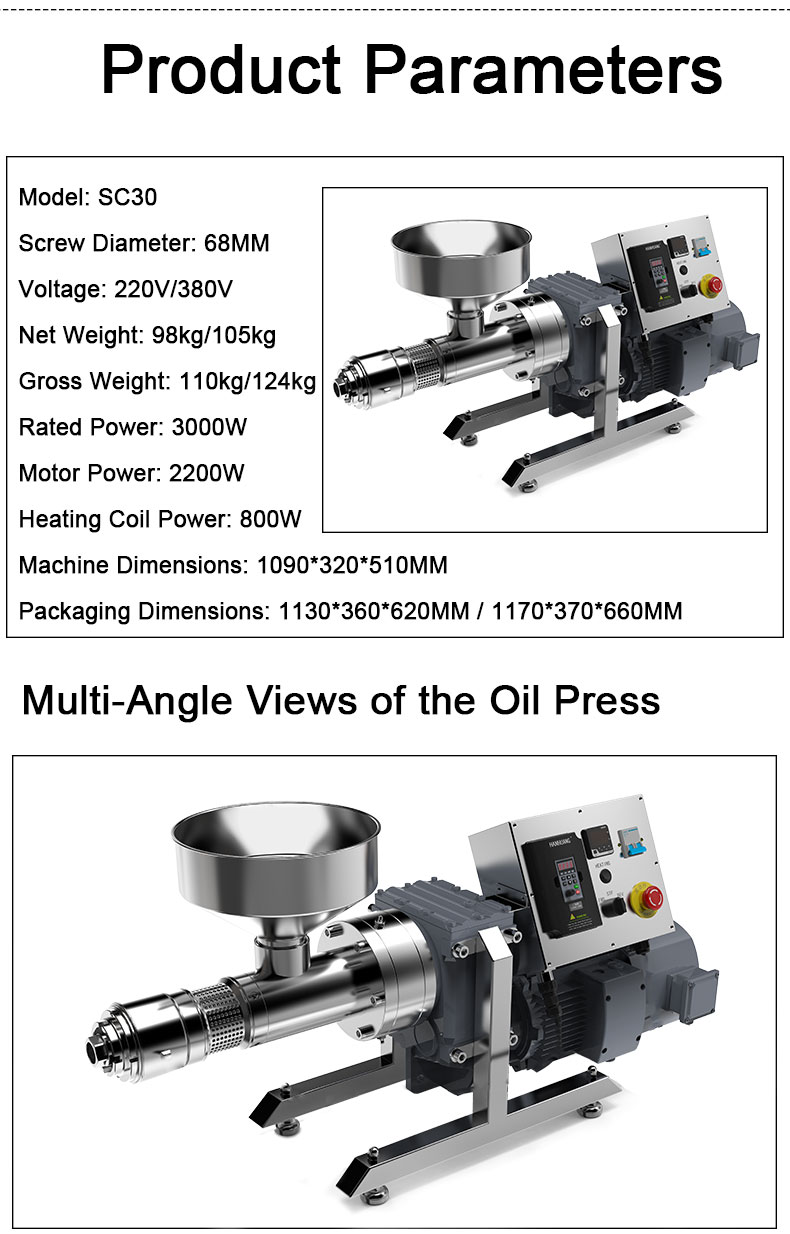

Technical Parameters:
| Model | SC30 |
| Capacity | 15–25 kg/h (depends on seed and setting) |
| Screw Diameter | 68 mm |
| Voltage | 220V / 380V |
| Rated Power | 3000W |
| Motor Power | 2200W (variable frequency drive) |
| Heating Coil Power | 800W |
| Net Weight | 98 kg / 105 kg (by voltage option) |
| Gross Weight | 110 kg / 124 kg |
| Machine Dimensions | 1090×320×510 mm |
| Packaging Dimensions | 1130×360×620 mm / 1170×370×660 mm |

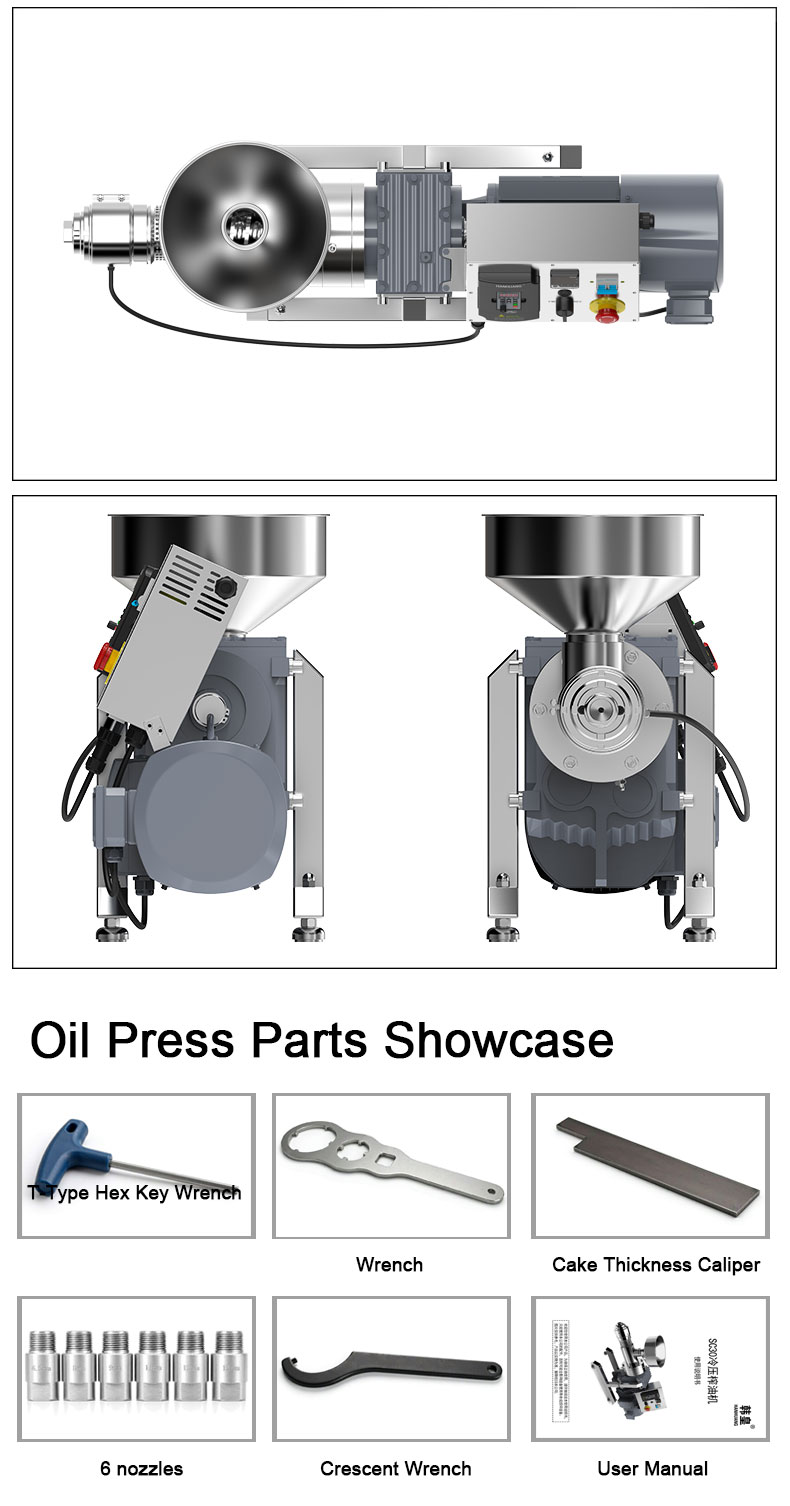

What’s in the box: T-type hex key wrench, open-end wrench, crescent wrench, cake thickness caliper, a set of 6 nozzles (6/8/10/12/14/16 mm) and a user manual — everything needed to start pressing on day one.
Who it is for: small oil workshops, farm shops, boutique and organic oil brands, and home businesses that want fresh, single-origin oil under their own label. One operator can feed, monitor and pack at the same time, keeping labor cost low.
Explore the Hanhuang cold press family: the compact SC10 cold oil press (15–20 kg/h), the heavy SC70 (4000W) and SC50 (25–35 kg/h), the large SC100 continuous expeller, and the water-cooled SL10 for heat-sensitive oils. Compare all cold press oil machines »
Hanhuang oil press machines are manufactured by Wenzhou Dongdubao Machinery Equipment Co., Ltd. and carry CE and CCC certification. Contact us for factory-direct pricing, voltage options and worldwide shipping.
