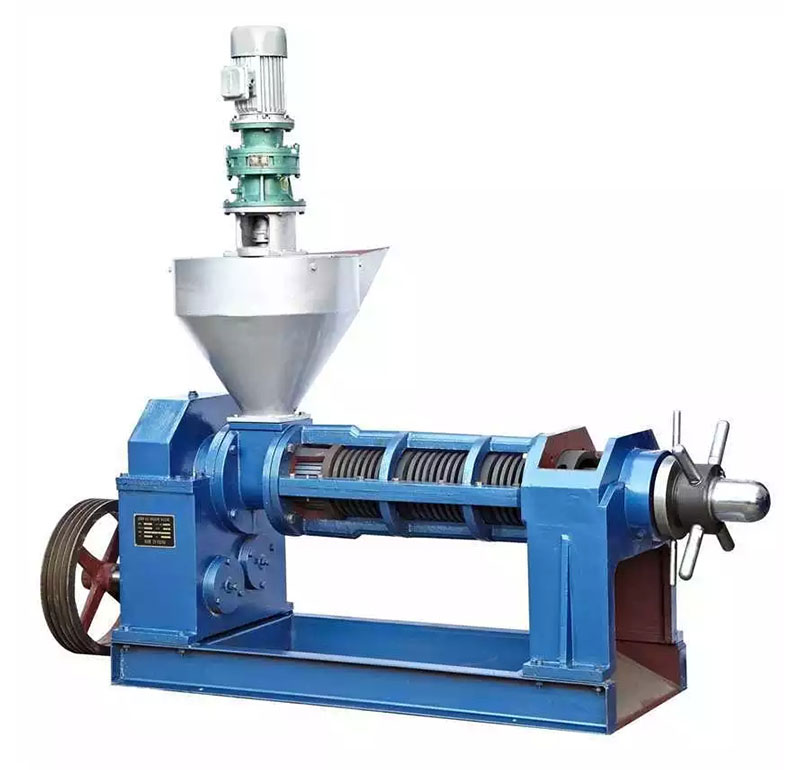

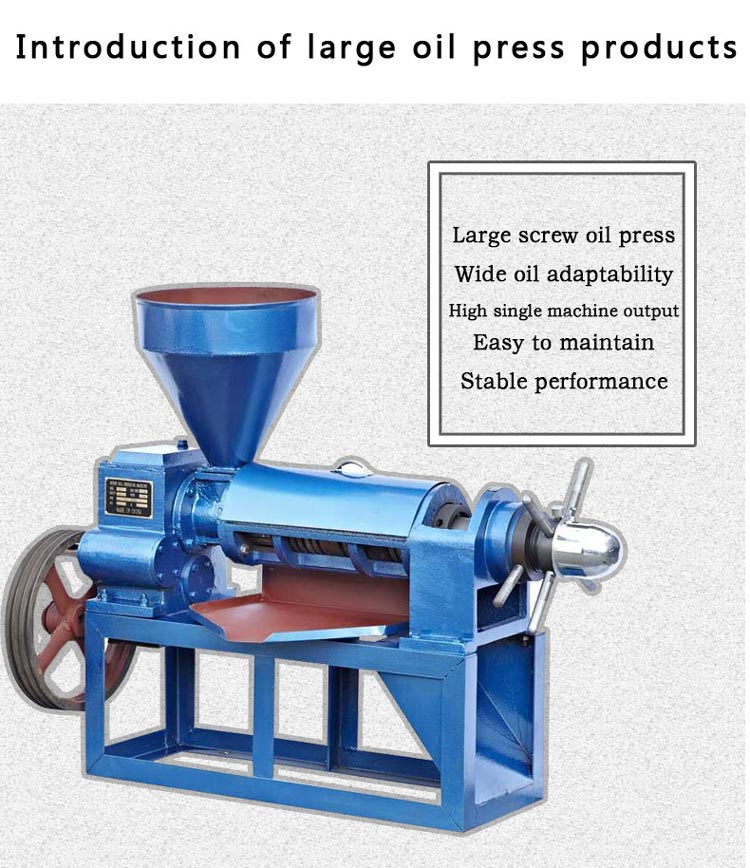

Screw Oil Presser — 60–850 kg/h Continuous Output
oil press machine/soy beans oil press/cold press oil machine, copra oil press machine, press oil maker machine/model 85 95 125 130 150 170

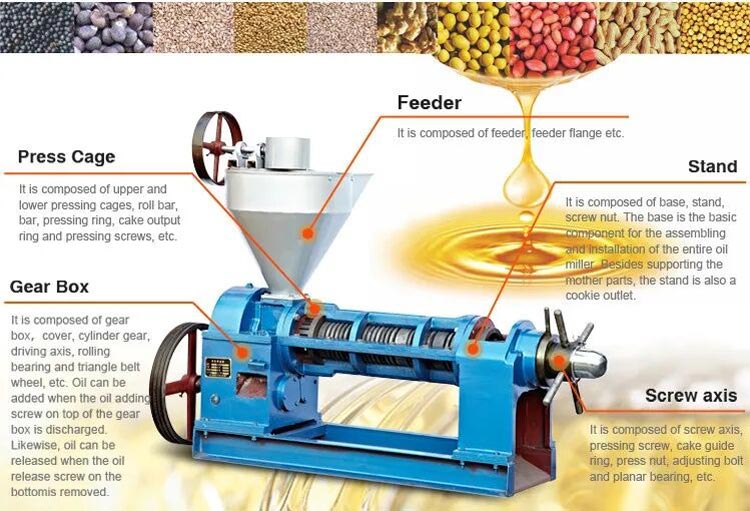

Screw Oil Presser Working Principle:
When the oil press is running, the processed material embryo enters the squeezing chamber from the hopper. The helix of the squeezed screw is pushed in and squeezed. The material embryo is carried out in the pressing chamber of the oil press. Under high-pressure conditions, there is
significant friction resistance between the material embryo and the squeezing and squeezing chamber. The heat caused by heat caused the thermal denaturation of the protein in the embryo, destroyed the colloid, increased the plasticity, and also reduced the viscosity of the oil, and thus precipitated oil easily. The oil production rate of the oil press is improved.
Advantages:
1) Easy to install and maintain.
2) Adopting advanced world-famous brand components in each part.
3) Make oil from all kinds of seeds and nuts.
4) Just need to process the oil plants once to get the maximum oil.
5) The main machine can run for more than 10 years.
6) The price is far lower than that of a machine with the same productivity.
7) Residue oil in cake is less than 7.4%, high oil yield.

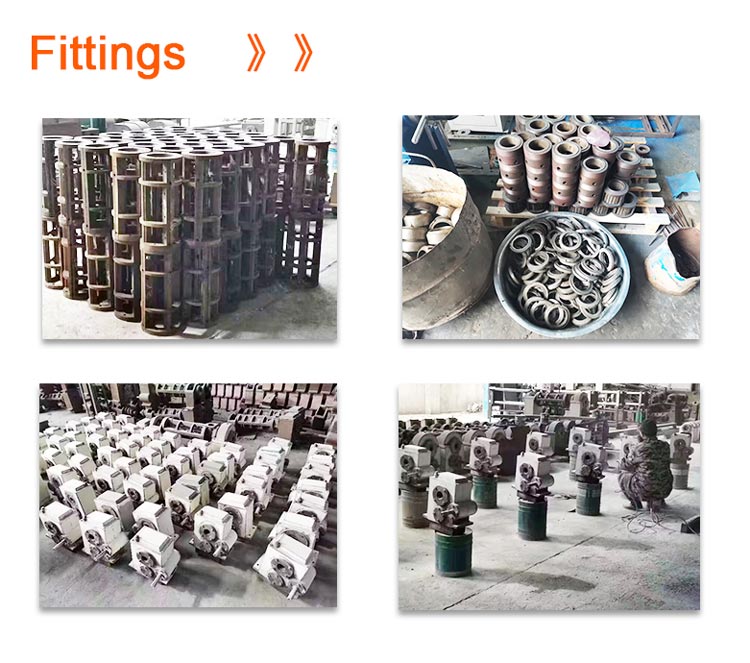

8) Wearing parts are forged and quenched treated.

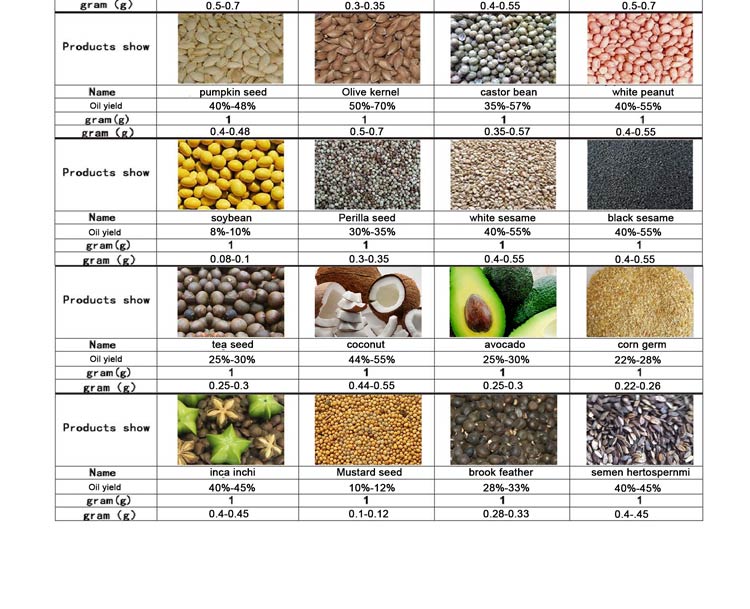

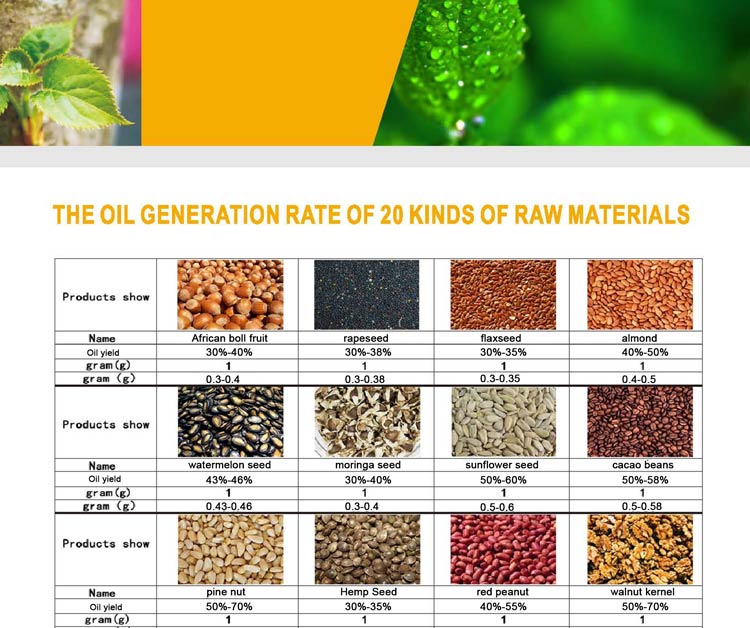

9) suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed, and palm kernel, etc.
10) The product has characteristics of small investment, high capacity, strong compatibility, and high efficiency. It is widely used in small oil refineries and rural enterprise.
|
Model |
Capacity |
Product Dimensions(m) |
Motor power |
|---|---|---|---|
|

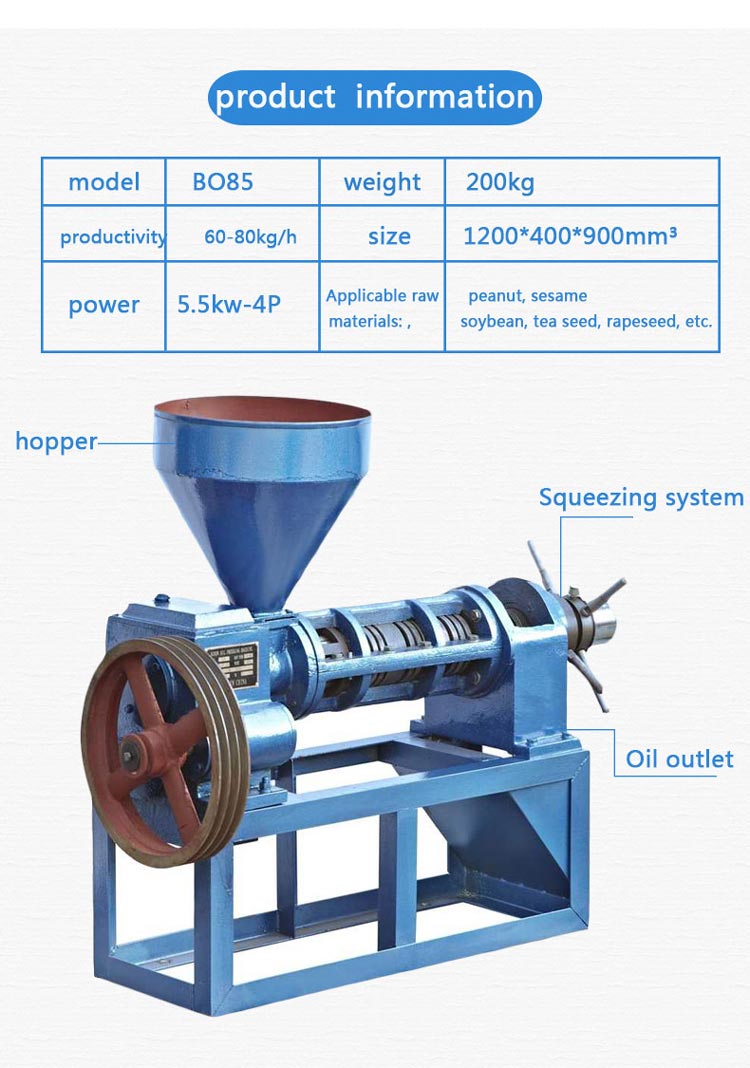

BO85 |
60-80kg/h;1.4-2 T/24hrs |
1.20 * 0.40 * 1.05 |
5.5kw |
|

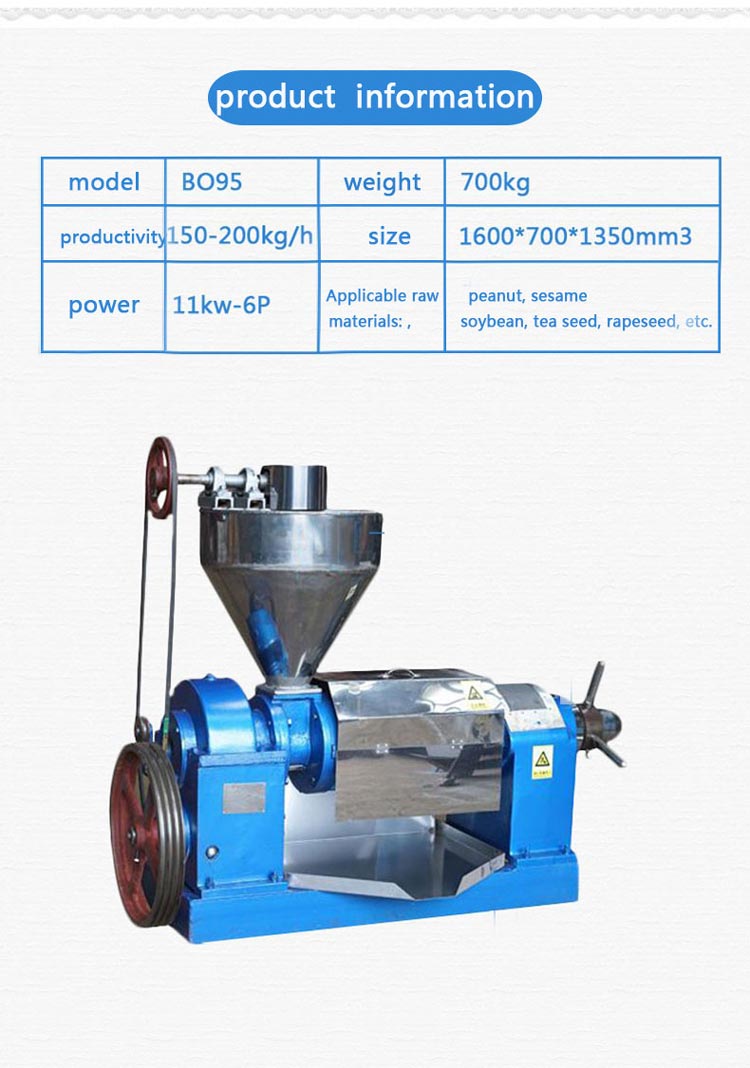

BO95 |
150-200kg/h;3.5-5 T/24hrs |
1.60 * 0.70 * 1.35 |
11Kw-6P |
|
BO105 |
210-300kg/h;5-7 T/24hrs |
1.80 * 0.70 * 1.35 |
15Kw-4P |
|
BO128 |
300-375kg/h;7-9 T/24hrs |
1.90 * 0.80 * 1.17 |
15Kw-6P |
|

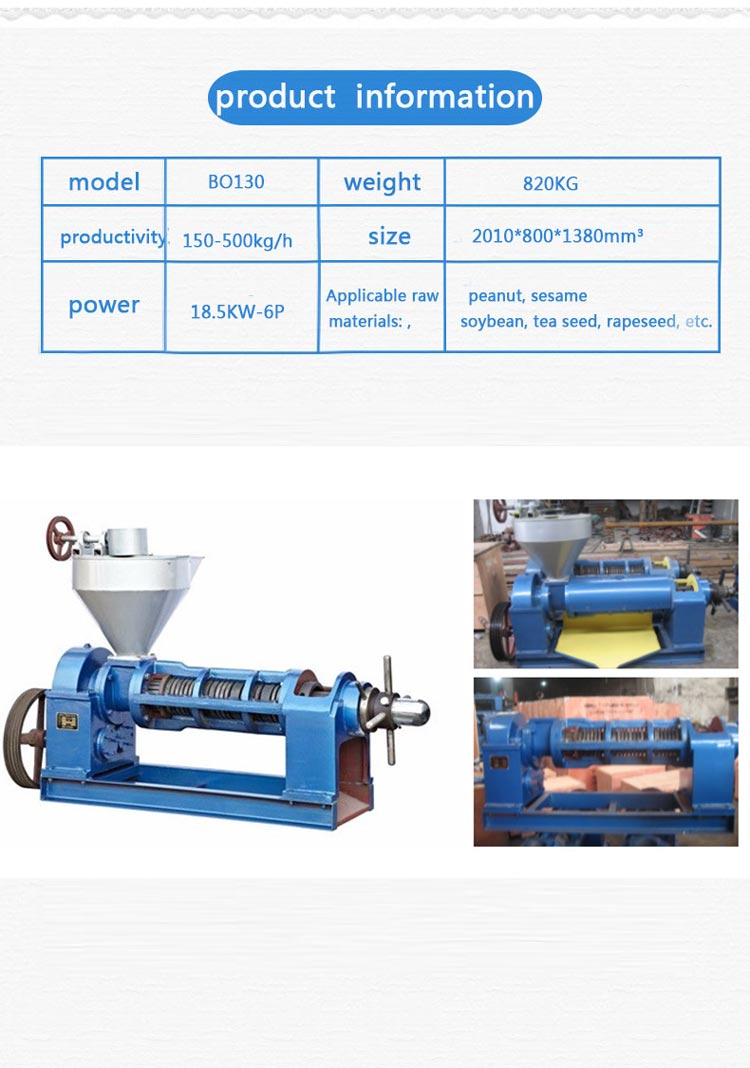

BO130 |
450-500kg/h;10-12T/24hrs |
2.01 * 0.80 * 1.38 |
18.5Kw-6P |
|
BO150 |
600-700kg/H;14T-17T/24hrs |
2.18 * 0.79 * 1.79 |
30kw-6p |
|
BO170 |
750-850kg/h;18-20T/24hrs |
2.18 * 0.80 * 1.79 |
30Kw-6P |
|
BO120 |
250kg-300kg/H;6-7T/24hrs |
1.87 * 0.45 * 1.12 |
11kw-6p |
|
BO140 |
350kg-450kg/H;8-11T/24hrs |
2.22 * 0.75 * 1.42 |
18.5kw-4p |
