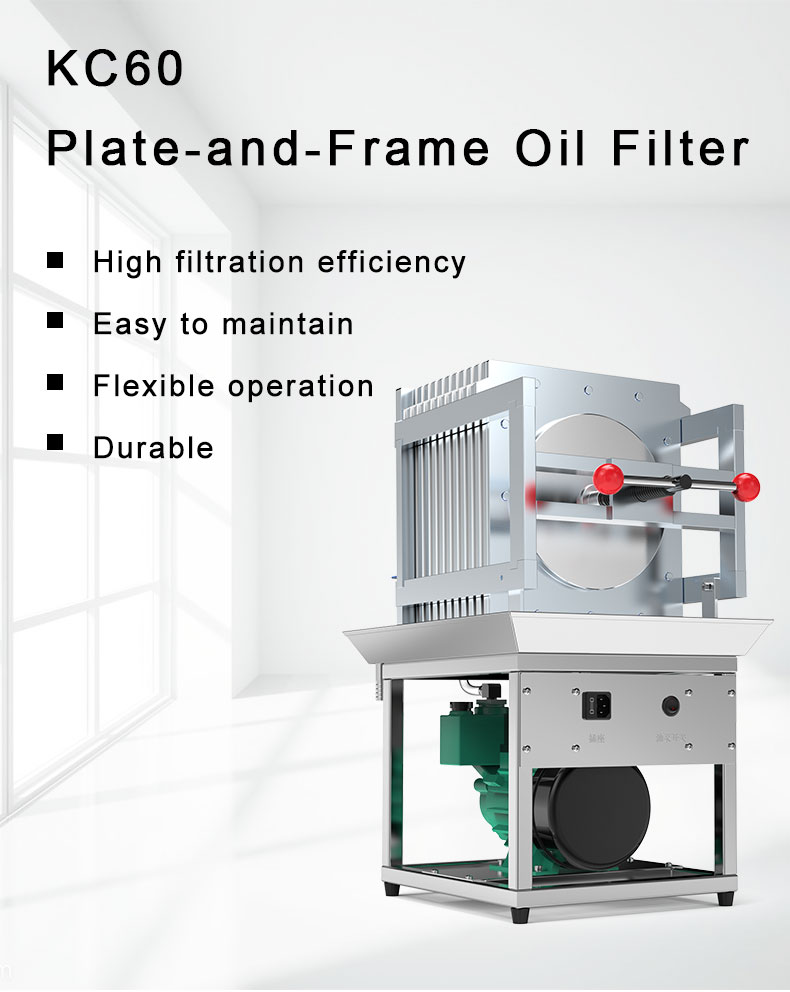

KC60 Plate & Frame Oil Filter

DongDuBao KC60 Oil Filter

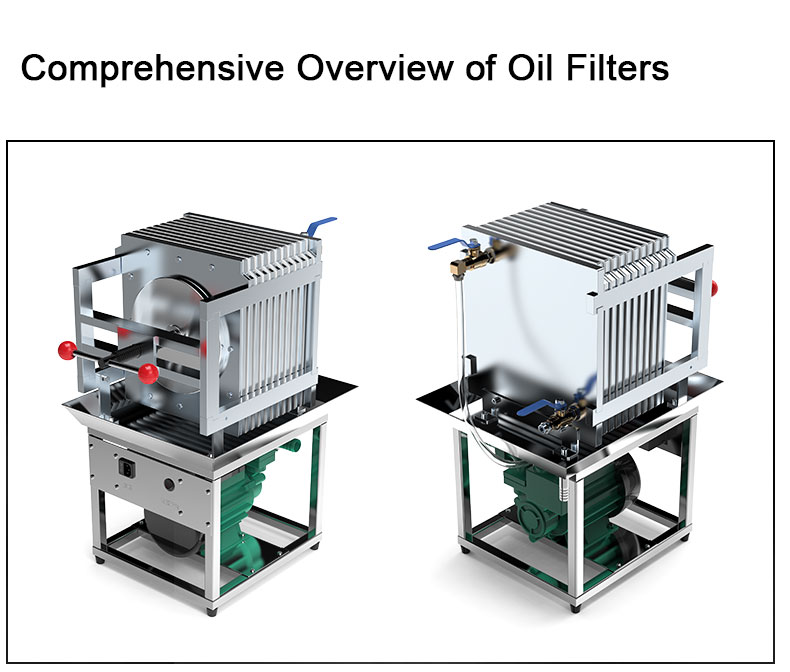

Product Overview

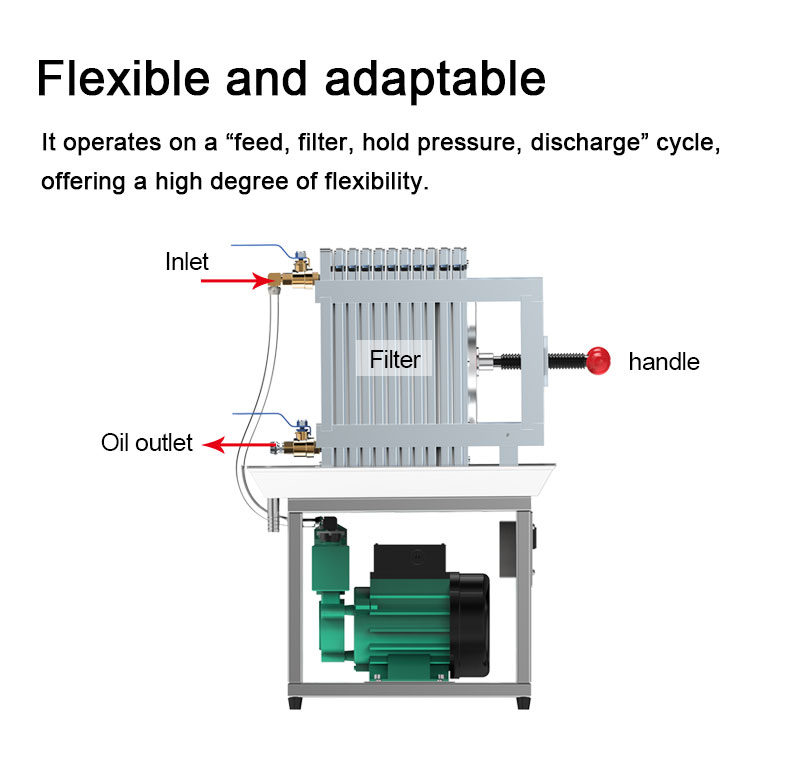

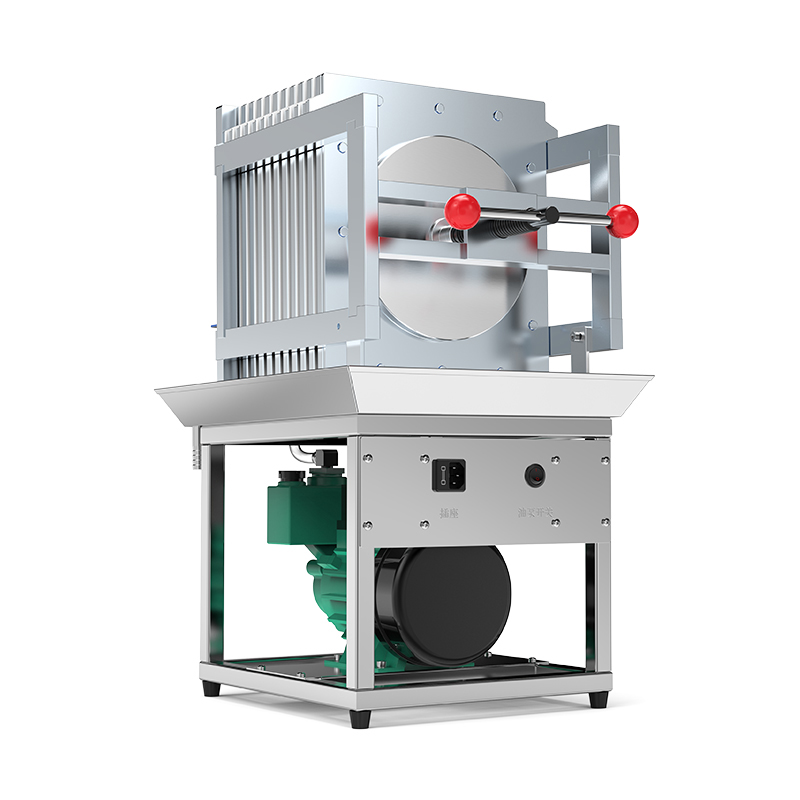

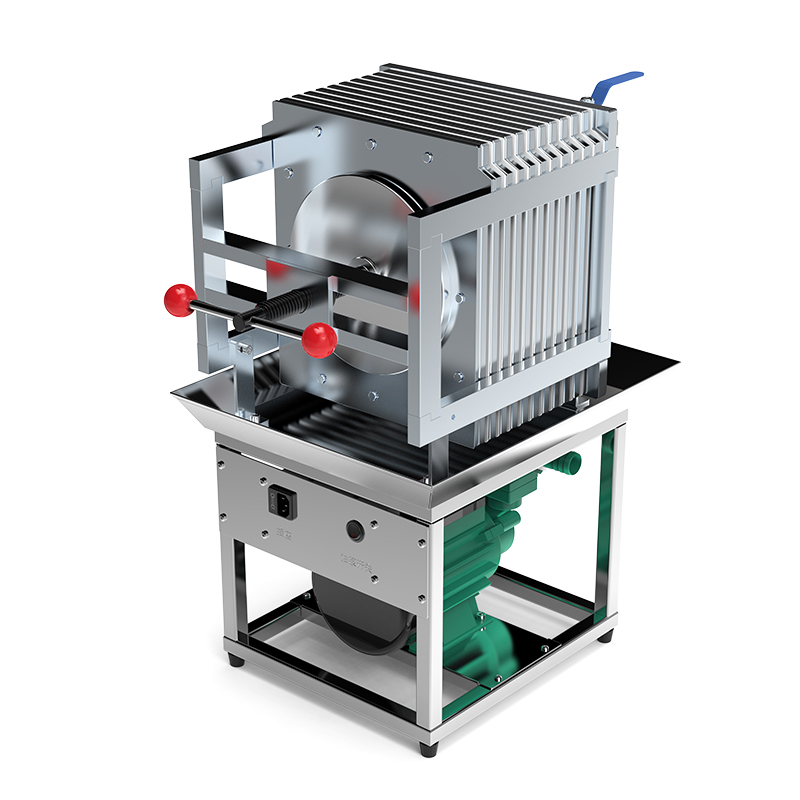

The DongDuBao KC60 is a compact electric oil filter for home workshops and small commercial presses. A built-in transfer pump feeds crude oil into the filtration stack, where it passes through layered filter cloth under positive pressure. After each run, the operator loosens the hand-screw, opens the plate assembly, and replaces the cloth

Key Advantages

Pump-Feed Positive Pressure: Transfer pump drives steady flow through the cloth, faster and more thorough than gravity settling.

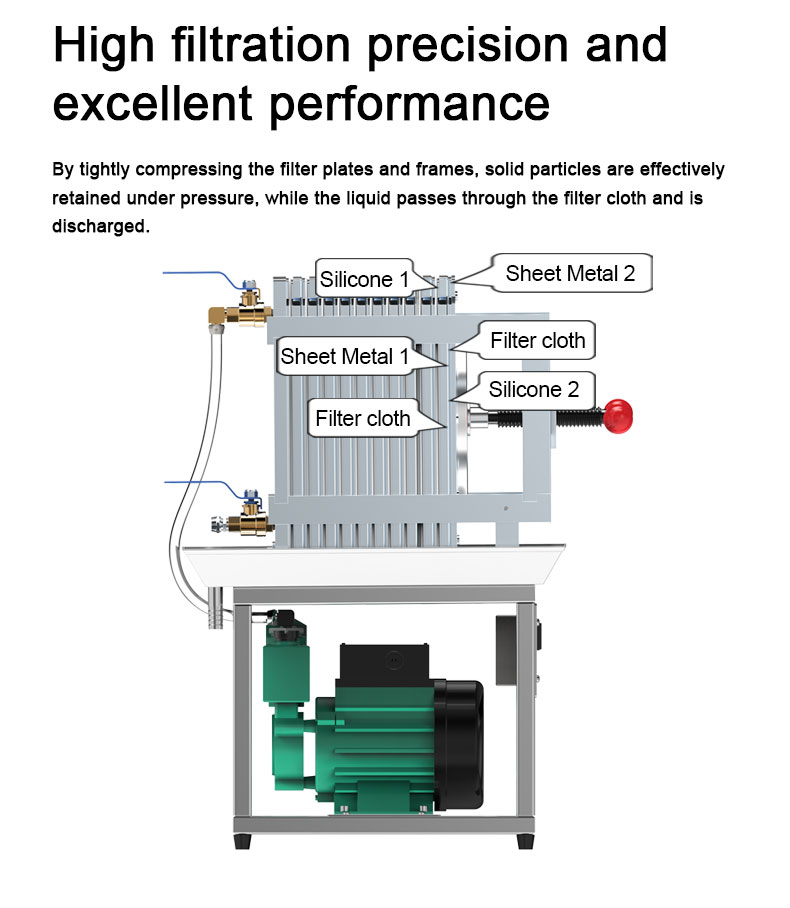

Cloth-Type Filtration: Uses reusable filter cloth (not disposable paper discs); trap fines and colloids layer by layer for clear oil.

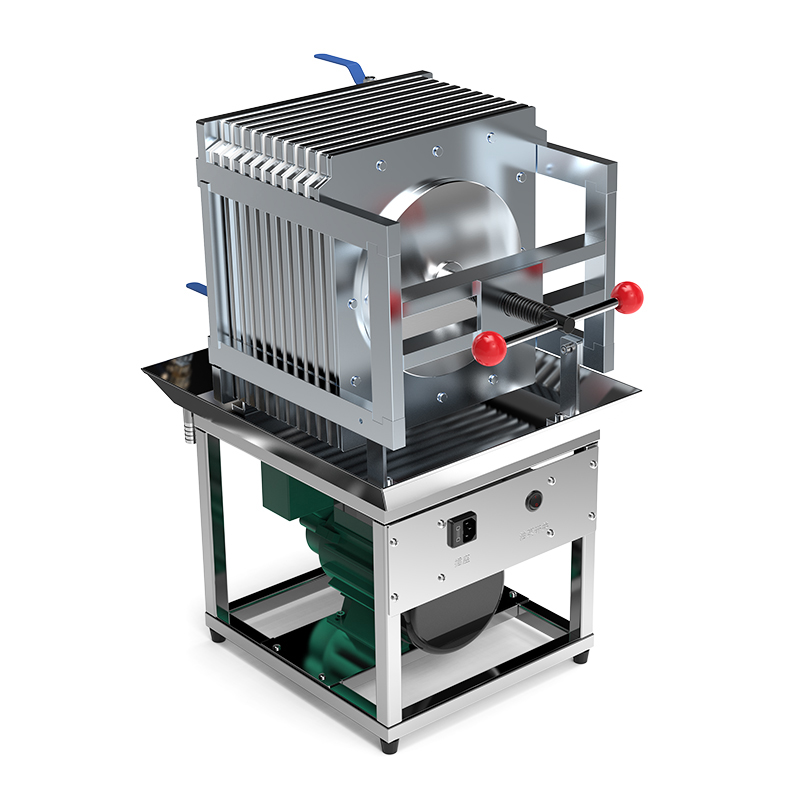

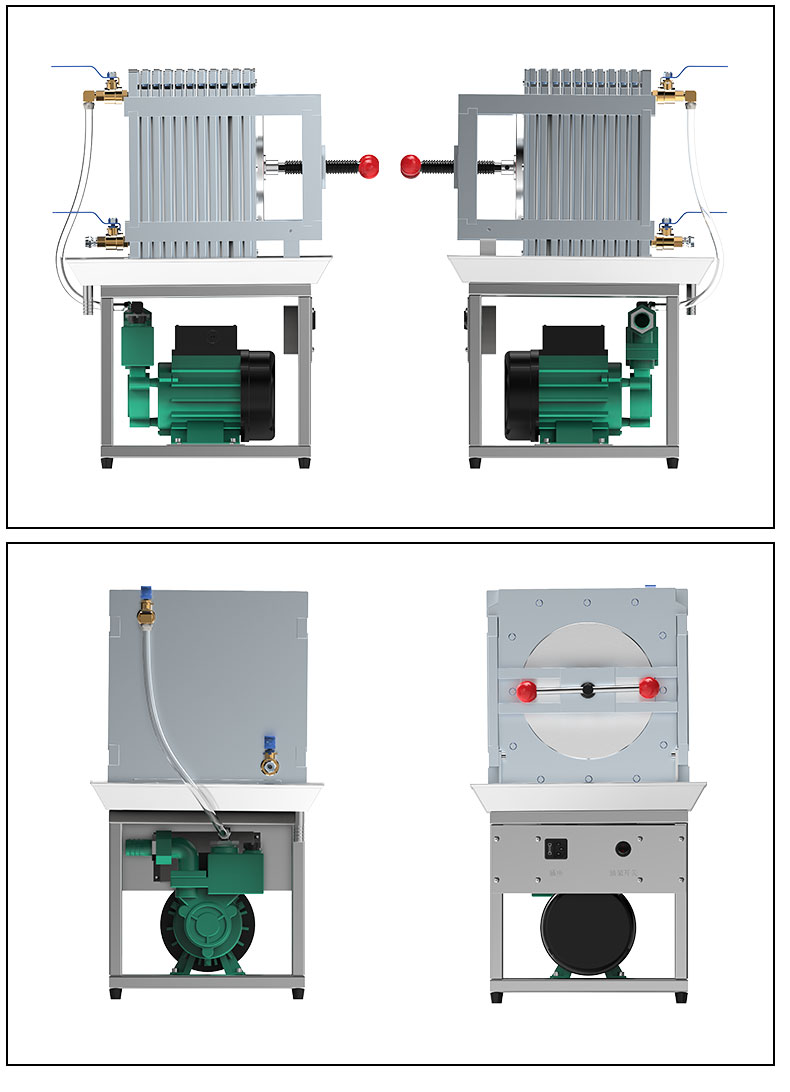

Screw-Release Plate Access: Loosen the hand-screw, swing the plates apart, and reach the cloth directly—no glued cartridges, no sealed trays.

Low Residual Loss: Positive-pressure push forces most oil out of the cloth before discharge, keeping cake relatively dry for better yield.

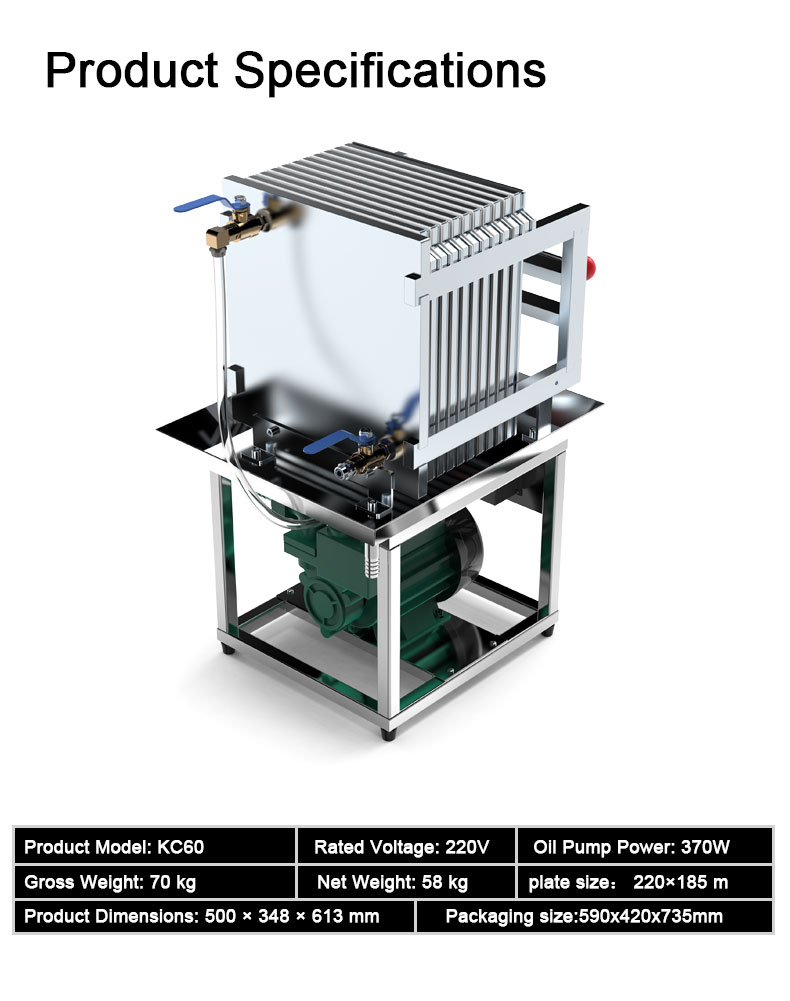

Product Model: KC60
Rated Voltage: 220V
Oil Pump Power: 370W
Gross Weight: 70 kg
Net Weight: 58 kg
plate size:
220x185 m
Product Dimensions:500x 348 x 613 mm
Packaging size:590x420x735mm
