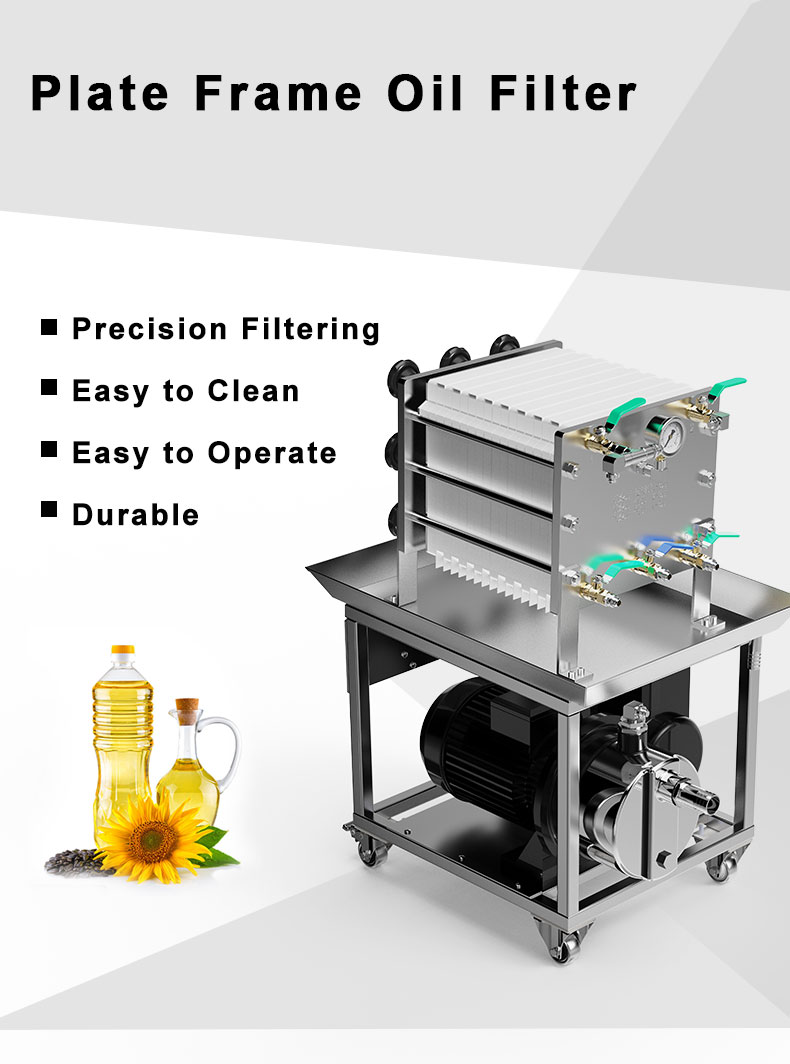

Plate Frame Oil Filter

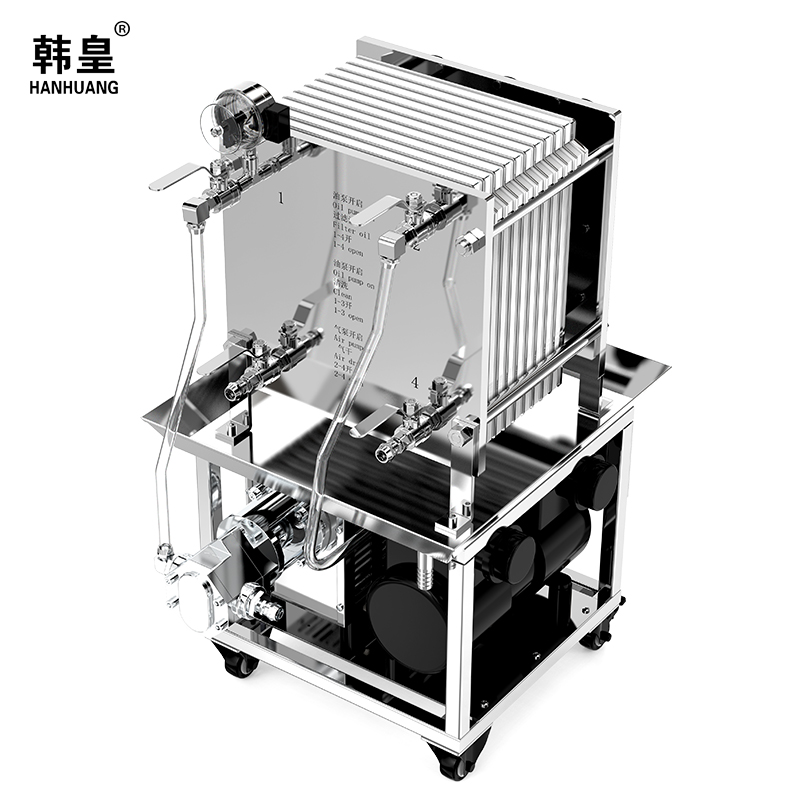

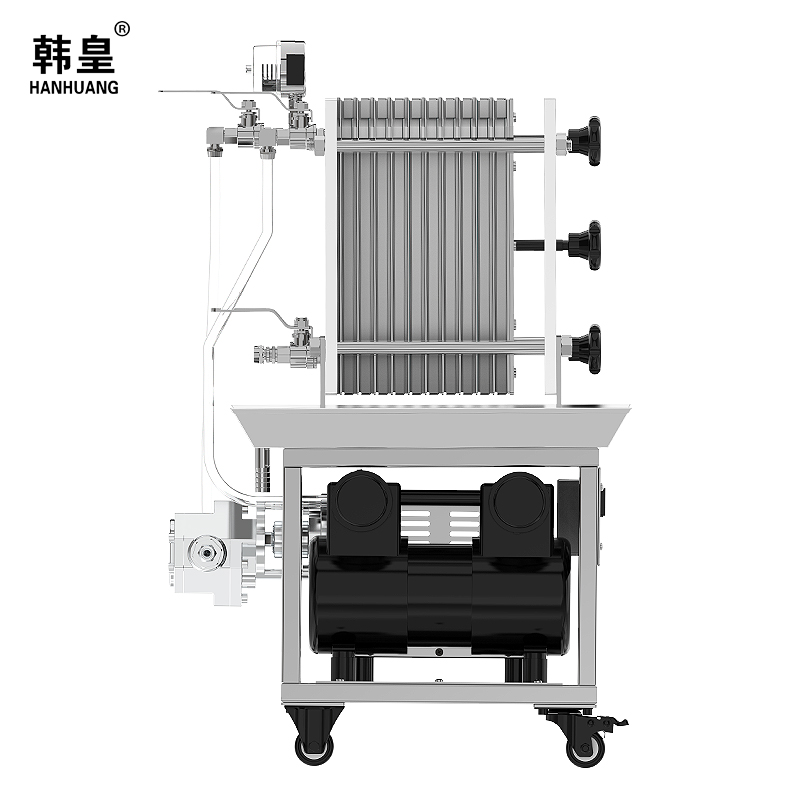

DongDuBao 304 Stainless Plate & Frame Oil Filter – Intermittent Pressure Filtration with Dual Pump

Product Overview​

The DongDuBao Plate & Frame Oil Filter​ is an intermittent pressure filtration unit built for small to mid-size edible oil workshops. Using a transfer pump for primary feeding and an air pump for final residual recovery, it maximizes oil yield while delivering consistently clear, shelf-stable oil. The full 304 stainless construction ensures hygienic, corrosion-free operation across daily production runs.

Key Advantages​

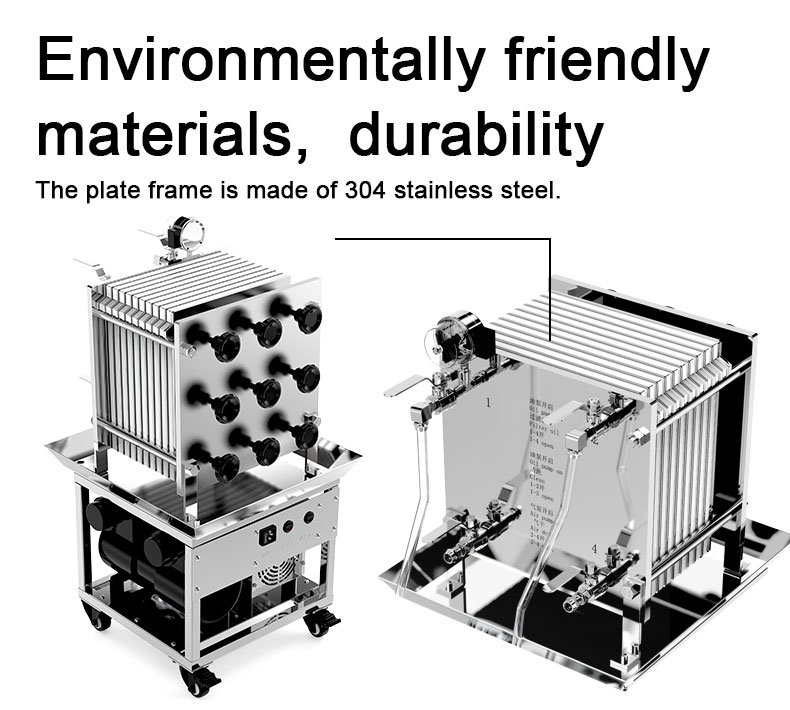

Full 304 Stainless Build:​ Every plate, frame, and drainage channel is made from food-grade 304 stainless steel—safe for edible oil, resistant to oxidation and daily wash-down.

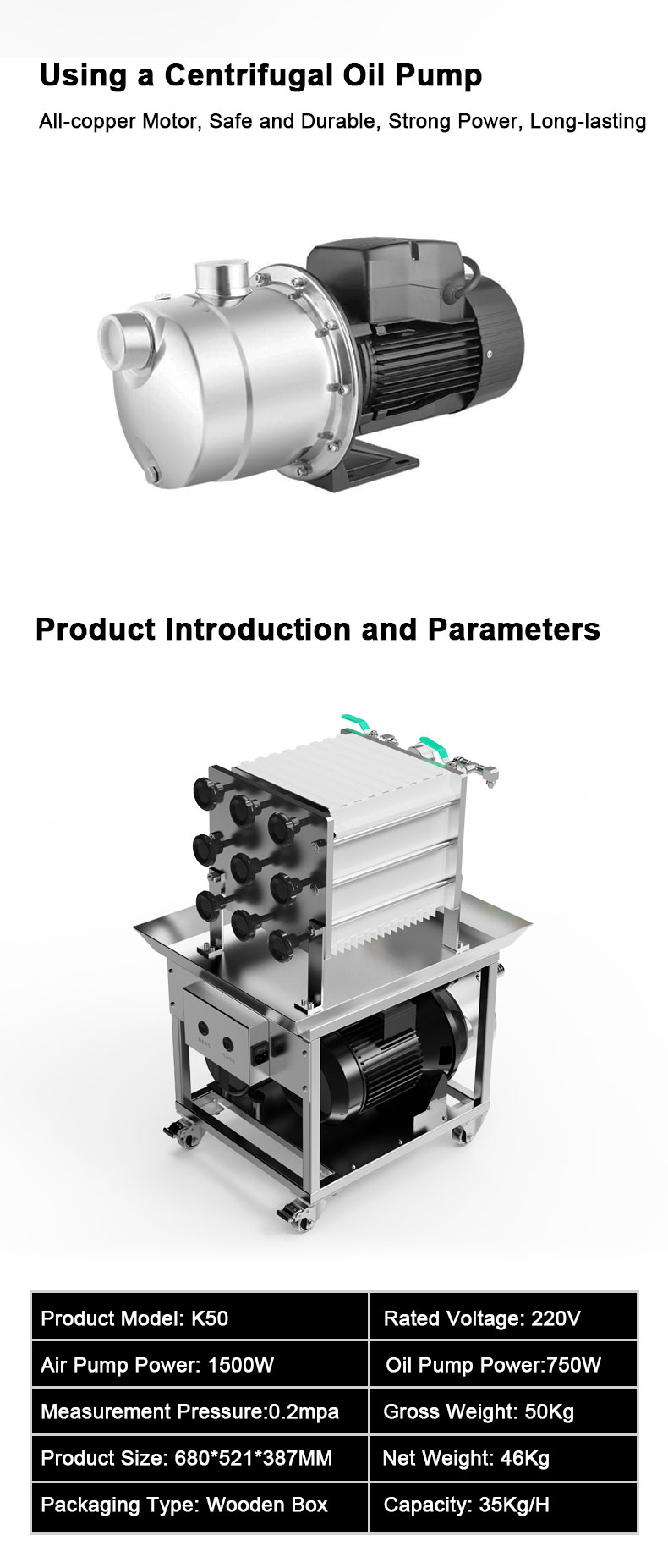

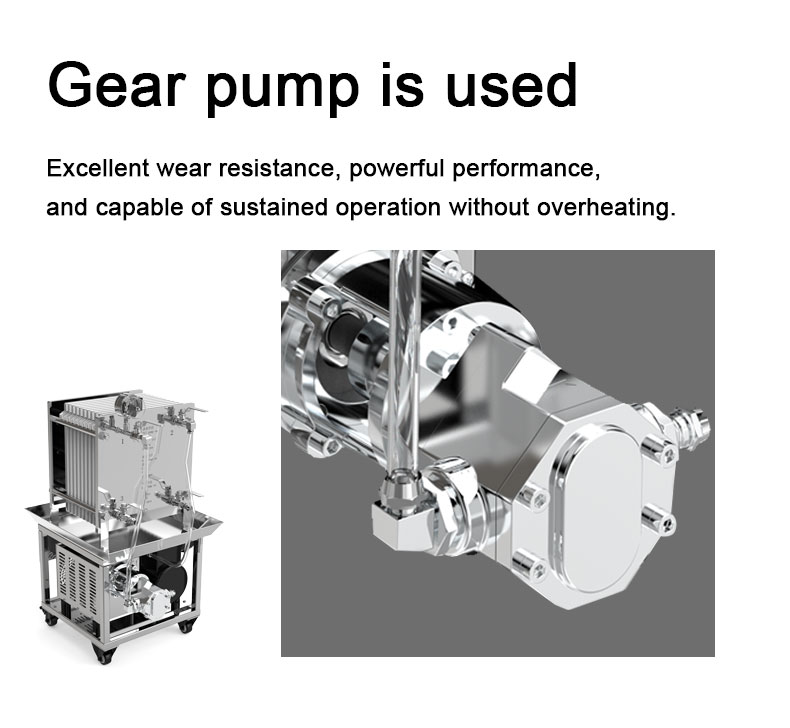

Dual Pump System (Transfer + Air):​ A transfer pump feeds crude oil under differential pressure for fast initial filtration; afterward, the air pump draws residual oil out of the cake and cloth, recovering oil that gravity or single-pump systems leave behind.

Dry-Cake Discharge:​ Solids accumulate as a firm filter cake on the cloth surface; after the air-pull step, cakes release cleanly with minimal cling—reducing waste and keeping recovered oil volume high.

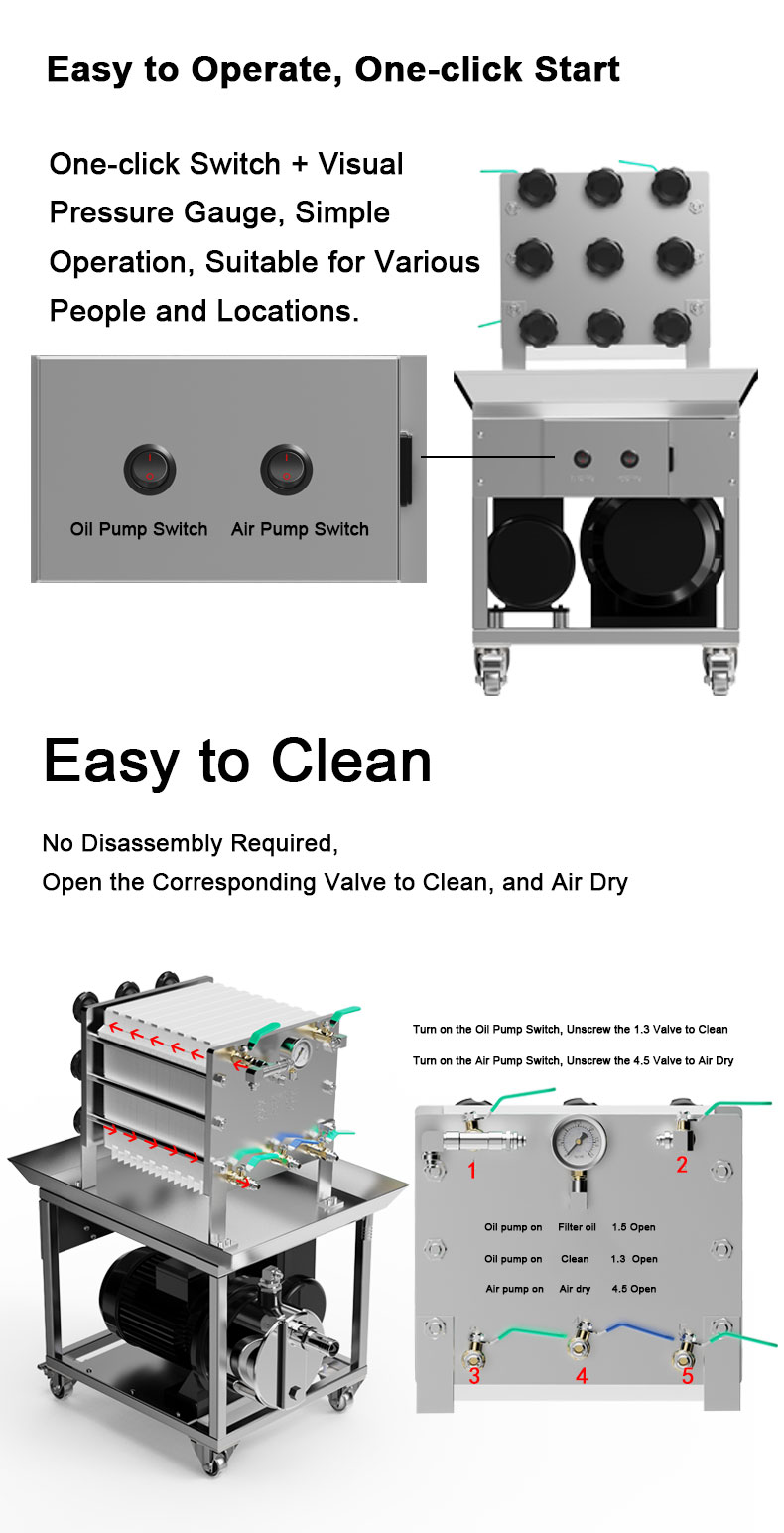

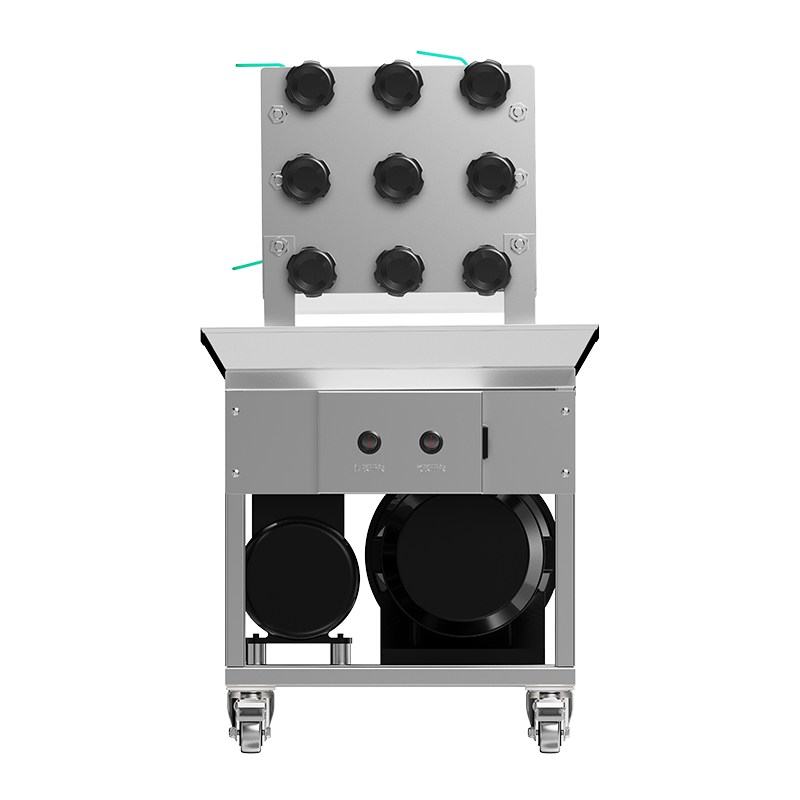

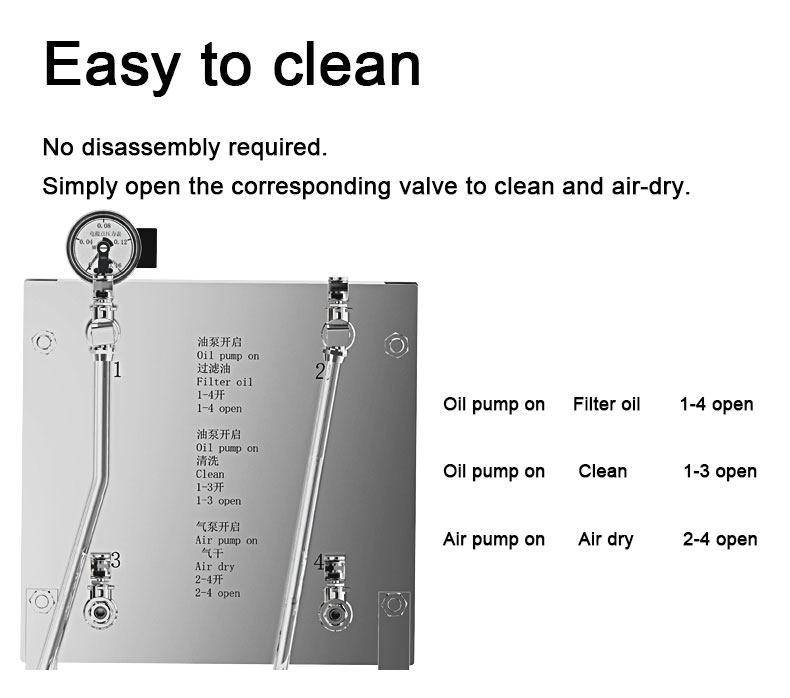

Quick Frame Release & Cloth Swap:​ Loosen the hand-screw, slide frames apart laterally, peel off the spent cloth or paper, reload fresh media, and retighten. No special tools, no full disassembly.

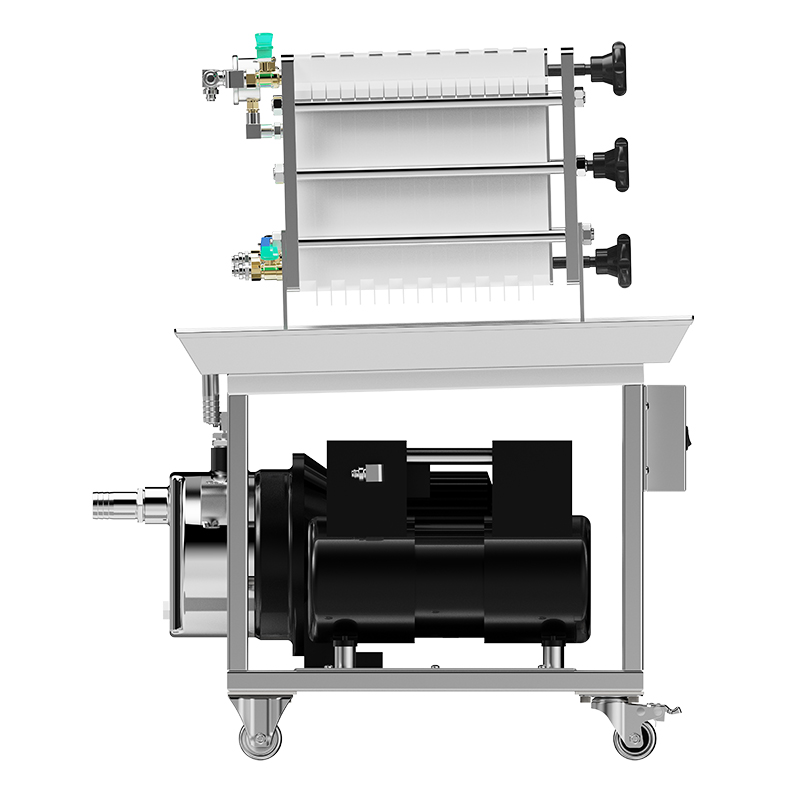

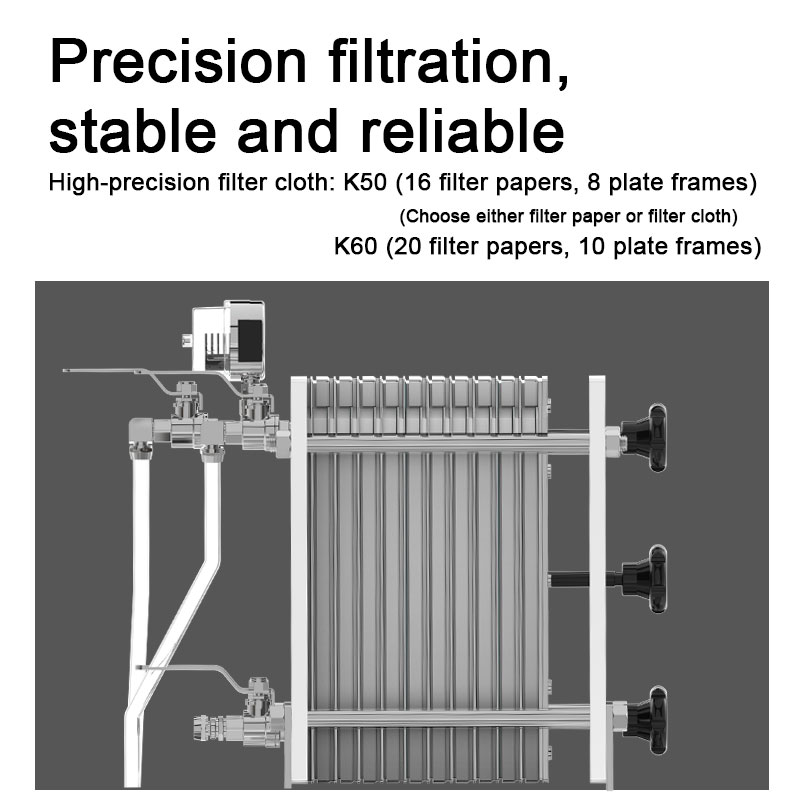

Layer-by-Layer Horizontal Clarity:​ As crude travels left to right through successive chambers, each plate captures progressively finer solids—delivering visibly brighter oil at the outlet.

How It Works​

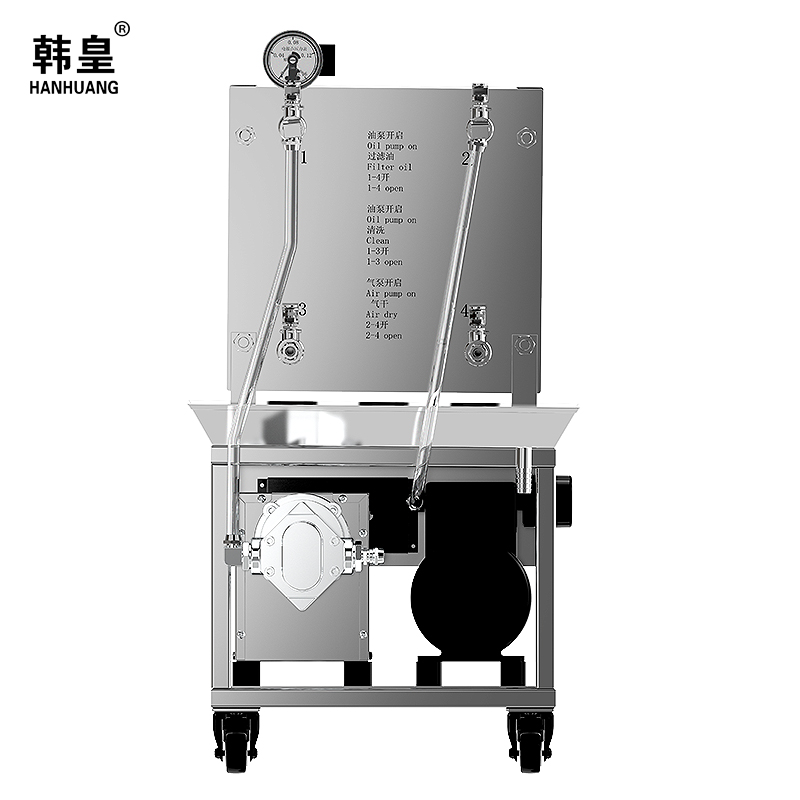

The plate and frame filter press is an intermittent pressure filtration unit. Crude oil is fed by a transfer pump​ under differential pressure; the liquid phase passes through filter cloth into drainage channels while solids form a filter cake​ on the media surface. After the main filtration cycle, an air pump​ draws off residual oil from the cake and cloth—maximizing oil recovery yield before the frames are opened for cake discharge and media refresh.
